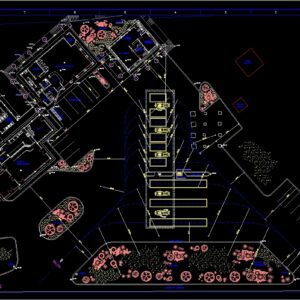

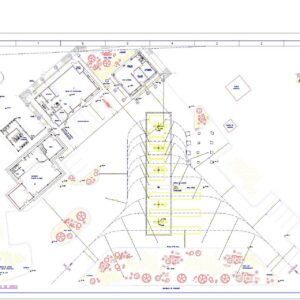

Plant of service station – Necessary turn measures in the spouts – Full shop
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
revision, no., by, date, drawing no., approved, reference planes, owner, scale:, submitted, arc. cad no., title :, project :, collated, drawn, esc. Plot :, location, sheet no., rev. no., collated :, date :, drawing no .: approved: submitted :, drawn :, approved for construction, preliminary emission, fs, plant, electric, booth, control, ventilation, filling nozzles, green area, sink, cafeteria, source of soda, local, security door, vapoleta, entrance, exit, green area, plant radios of turns, post with, transformer, deposit, garbage, lvmp., office, dep., bathrooms, public, box , convenience store, room, maq., water-air, parking, area, room, pull express, rubbers, wait, work, boundary, drainage channel, slope, notes, and adjusted in place, existing, septic tank
