Small Kitchen Floor Plan & Lighting Layout

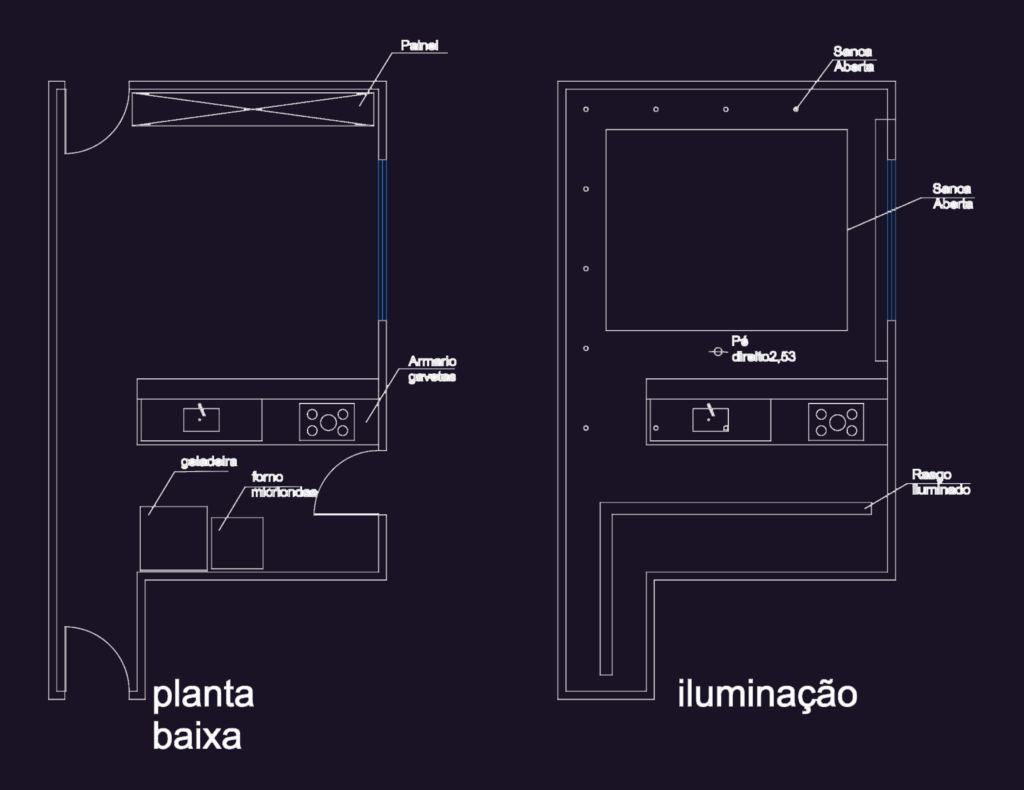

2D floor plan of a small kitchen side-by-side with a reflected ceiling lighting plan showing cove light details.

planta baixa for a kitchenette layout incl. ceiling details like rasgo iluminado & sanca aberta. we’ve got the appliances in there too like the fridge & microwave.

FREE

File Details

File Type
DWG
Type
Detail
Language
Portuguese
Materials
N/A
Units
Metric
Area
10 – 49 m² (107.6 – 527.4 ft²)
Uploaded by
Rafiq
Category
Apartment, Residential
Published
Jun 7, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

apartment layout iluminação interior design kitchen plan lighting layout planta baixa residential
