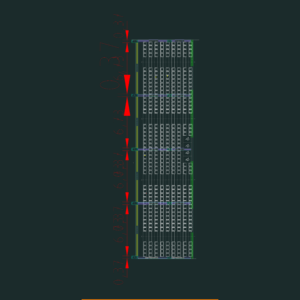

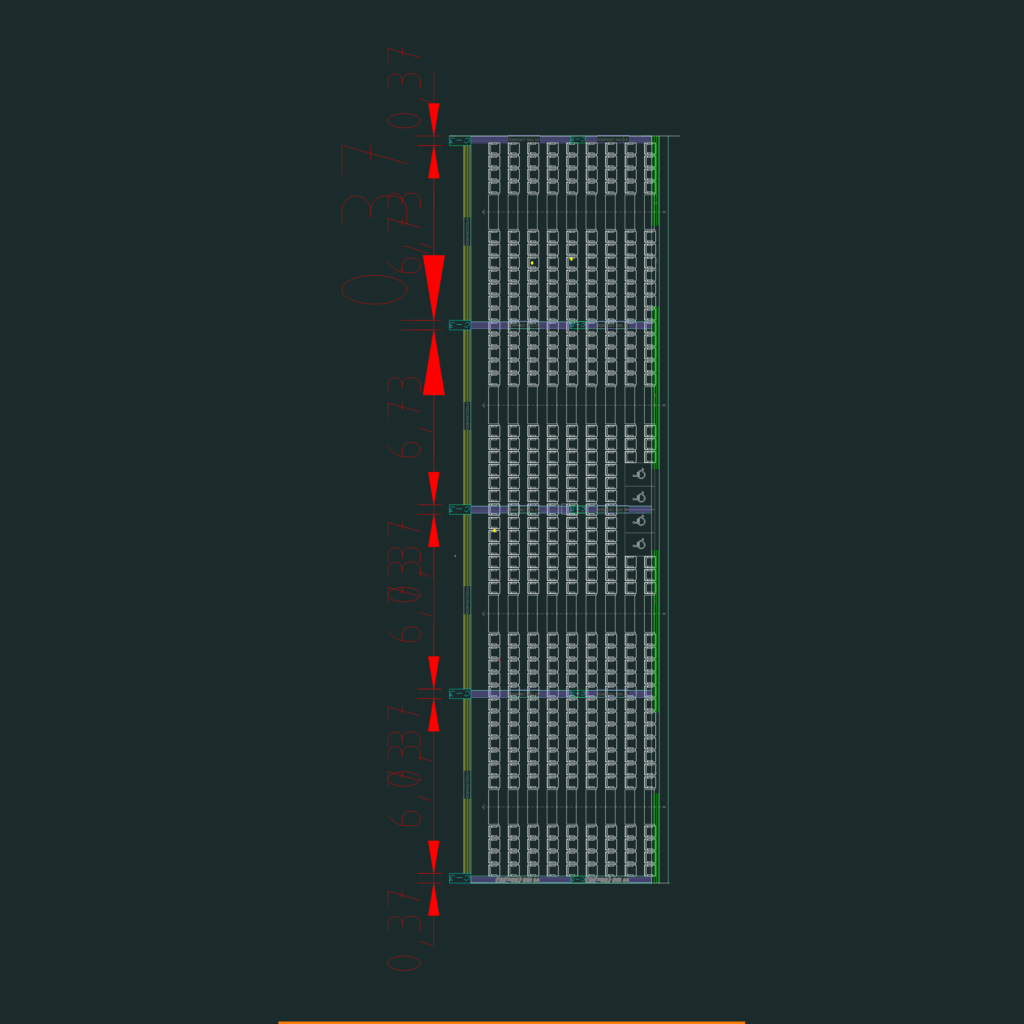

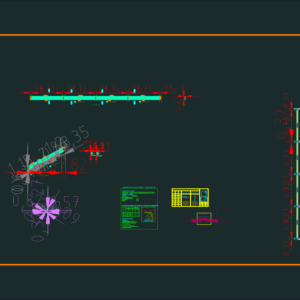

Structural details for stadium graderies and grandstand seating areas. Includes section views, column schedules for C-3 and C-5, and reinforcement for beams like VI-105. I’ve also kept the technical specs for f’c=210kg/cm2 concrete and seismic parameters in the notes. Detalles estructurales para graderías de coliseos o estadios: – Cuadro de columnas y zapatas – Secciones de vigas (V-102, VI-105) – Especificaciones técnicas y traslapes – Parámetros de diseño sísmico
Stadium Seating Graderies Structural Details DWG
