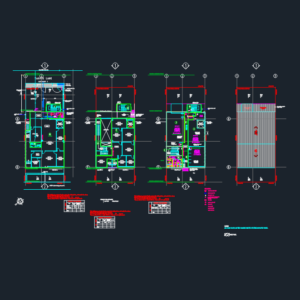

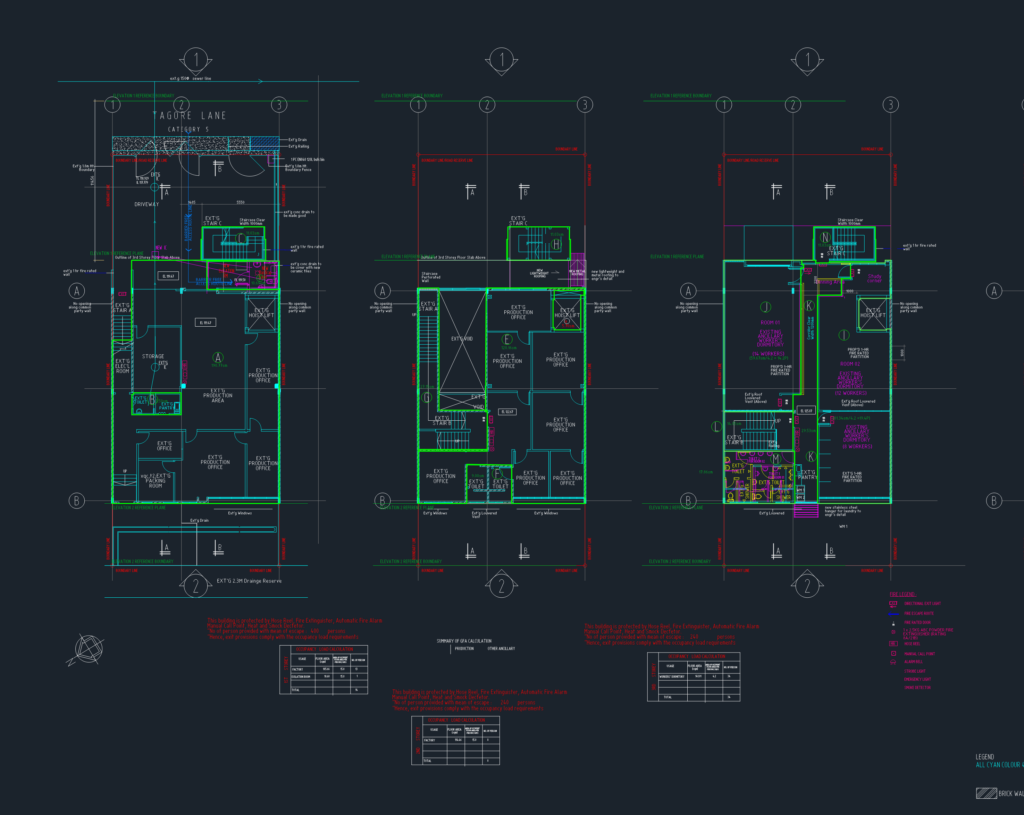

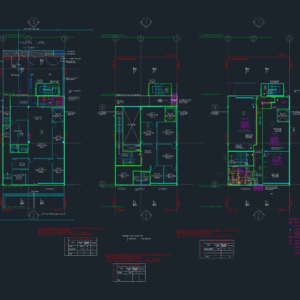

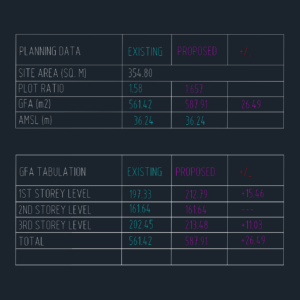

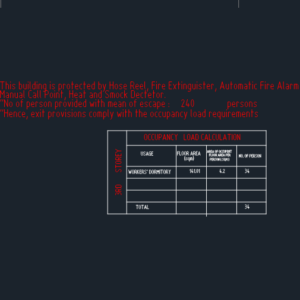

Industrial building plan for Tagore Lane lots (MK20). Includes detailed GFA calculations, plot ratio analysis and fire safety provisions (FSSD) for existing and proposed works. – Fire safety: exit routes, strobe lights, smoke detectors, and 1-hr fire-rated partitions. – Facilities: production area, office, storage, and 14-pax ancillary worker’s dormitory. – Notes on drainage reserve, road reserve, and 1.8m ht. boundary fences.
Tagore Lane industrial building fire safety plan with GFA tabulation and dormitory layout
