Tenneco BD-8953-0 Calibration Punch for M0926 M0960 Machine

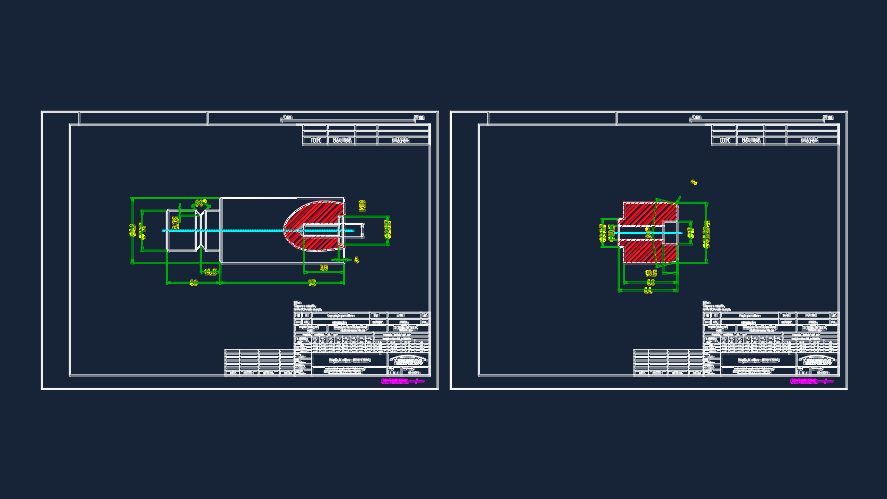

2D mechanical CAD drawing of a Tenneco BD-8953-0 calibration punch with section views and metric dimensions.

technical drawing for a calibration punch body used on Tenneco M0926 / M0960 equipment. it’s got the specific 60-62 HRc hardness callout and full metric dimensions. Punção para calibrar para máquinas Tenneco M0926 e M0960.
