Triangle Star Delta Starter DWG Block for AutoCAD

Triangle Star Delta Starter DWG Block for AutoCAD

Scheme control and power

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

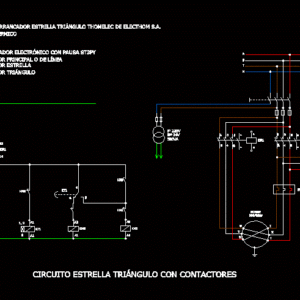

Star circuit triangle with contactors, References star star triangle thomelec de electhom s.a. Thermal relay for start electronic timer with pause main line contactor star contactor triangle contactor, Io ii, Hz power, motor

Raw text data extracted from CAD file:

T3 L3 T1 L1 T2 L2 A2 A1 NA NA A2 A1 NA NA A2 A1 A2 A1 NA NA 1 A2 A1 NA NA KM1 KM3 KM2 3 5 2 U V W Z X Y FR1 1 3 5 2 6 6 4 4 1 3 5 2 6 4 95 96 S1 S2 13 14 KM1 FR1 97 KM1 KT1 KM2 KM3 KM2 KM3 KT1 4 6 5 KM3 8 1, 2 A1 A1 A1 A1 A2 A2 A2 A2 CIRCUITO ESTRELLA TRIÁNGULO CON CONTACTORES REFERENCIAS ARRANCADOR ESTRELLA TRIÁNGULO THOMELEC DE ELECTHOM S.A. FR1: RELEVO TÉRMICO S1: PARE S2: ARRANQUE KT1: TEMPORIZADOR ELECTRÓNICO CON PAUSA ST3PY KM1: CONTACTOR PRINCIPAL O DE LÍNEA KM2: CONTACTOR ESTRELLA KM3: CONTACTOR TRIÁNGULO R S N T Iº 220V IIº 24V 300VA 10A 10A ALIMENTACIÓN 24 V 50 HZ \W1.17678; MOTOR 380/660v
