Tridilosa DWG Detail for AutoCAD
Constructive detailof armor – Technical specifications
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

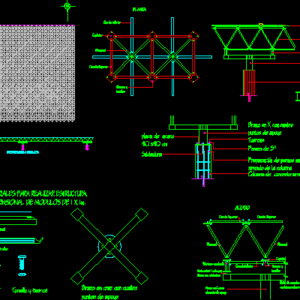

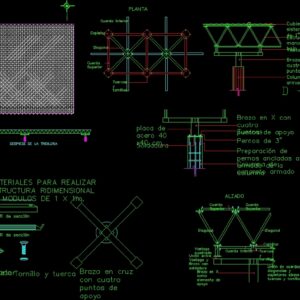

base cover of the multi-roof system, reinforced concrete column, square shank, arm in with four support points, nuts, bolts, preparation of bolts anchored to the assembly of the column, arm in with four support points, reinforced concrete column, welding, steel plate cm, plant, diagonal, copletor, lower rope, upper rope, screw nuts, upper rope, diagonal, copletor, screw nuts, union of diagonals copletores abase of nuts screws, upper rope, raised, diagonal, arm in as a support element, union between rod arm with welding, square shank, cross arm with four support points, lower rope, Awaken from the tridilose, three-dimensional structure of the brand under the p.t., diagonal, rope, profile base circular section, profile base section channel, copletor, square shank, screw nut, materials to make a ridiculous structure of modules of
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Detail |
| Category | Construction Details & Systems |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Concrete, Steel |
| Measurement Units | |
| Footprint Area | |
| Building Features | |
| Tags | armor, autocad, barn, constructive, cover, dach, DETAIL, detailof, DWG, hangar, lagerschuppen, roof, shed, specifications, structure, technical, terrasse, toit, tridilosa |
