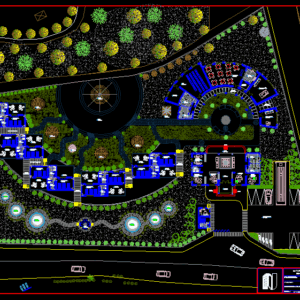

Turistic Center 2D DWG Design Plan for AutoCAD

This is a tourist unit for vacation enjoyment, has several buildings, the first building we find administrative offices, in the second we find dining room, auditorium, restrooms, games room, and 10 villas for hosting with the capacity of three people each one, we also can find green areas and swimming pool.

Language Spanish
Drawing Type Plan
Category

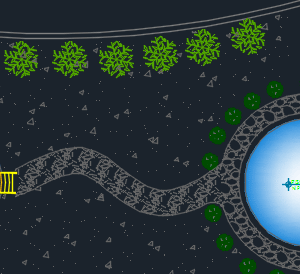

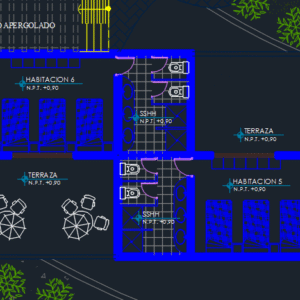

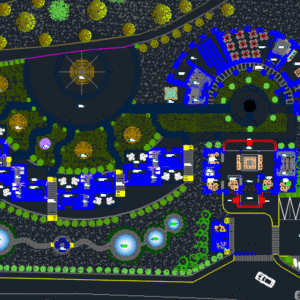

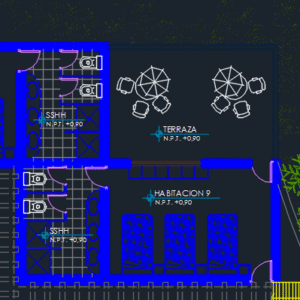

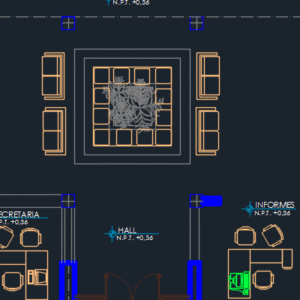

Additional Screenshots



File Type dwg, zip
Materials Concrete, Steel
Measurement Units Metric
Footprint Area Over 5000 m² (53819.5 ft²)
Building Features Pool, Garden / Park
Tags , , , , , , , , , , , , , , , , , , , ,
