Utilitarian Building DWG Plan for AutoCAD

Utilitarian Building DWG Plan for AutoCAD

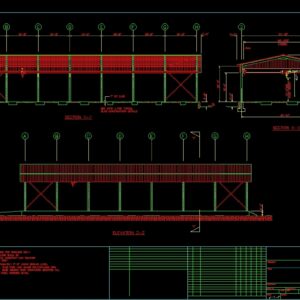

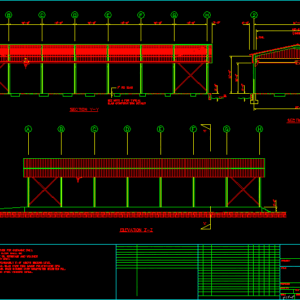

architectural plan and section inUtilitarian Building

Drawing labels, details, and other text information extracted from the CAD file:

comments, cad ref no:, plt scale:, scale, section, elevation, hook height, consultant:, approval:, rev, date, sign, date, sign, date, sign, title, project, drawn by:, date, checked by:, scale, approved by:, drg.no., notes:, all dimensions are typical and are given for guidance only., rail, roof, pitch, concrete surface to the pumphouse floor shall be, treated with an approved epoxy type oil resistant and weather, resistant paint system colour light grey., finish level of pumphouse to be approximately above ground level., ‘x’, rc slab, see note for typical, slab construction details, typical contruction details are r.c. slab over gauge polyethylene dpm, over blinding concrete over sub. base course over compacted selected fill., wind bracing to end bays shall be to steel vendors detail.

Raw text data extracted from CAD file:

COMMENTS ----/--/--/---/-/--- CAD REF No: PLT SCALE: SCALE 1 / 2 A B C D E F G G F E D C B A 1 2 SECTION Y-Y SECTION X-X ELEVATION Z-Z 22'-0" 18'-0" 51'-10" 3'-0" 3'-0" 49'-2 " 14'-9"MIN. HOOK HEIGHT 19'-8" CONSULTANT: APPROVAL: REV DATE SIGN DATE SIGN DATE SIGN TITLE PROJECT DRAWN BY: DATE CHECKED BY: SCALE APPROVED BY: DRG.No. NOTES: A1 1. 2. ALL DIMENSIONS ARE TYPICAL AND ARE GIVEN FOR GUIDANCE ONLY. L RAIL RAIL L C ROOF PITCH 12° 19'-8" 19'-8" 19'-8" 19'-8" 19'-8" 19'-8" H H (15000) 51'-10" 100 1 3'-0" 3'-0" CONCRETE SURFACE TO THE PUMPHOUSE FLOOR SHALL BE 3. TREATED WITH AN APPROVED EPOXY TYPE OIL RESISTANT AND WEATHER RESISTANT PAINT SYSTEM - COLOUR LIGHT GREY. FINISH LEVEL OF PUMPHOUSE TO BE APPROXIMATELY 3'-0" ABOVE GROUND LEVEL. 'X' 'X' 3'-0" 8 " : 1'-0" 3'-0" 7" RC SLAB SEE NOTE 4 FOR TYPICAL SLAB CONSTRUCTION DETAILS 4. TYPICAL CONTRUCTION DETAILS ARE 7" R.C. SLAB OVER 1000 GAUGE POLYETHYLENE DPM OVER 2" BLINDING CONCRETE OVER 6" SUB. BASE COURSE OVER COMPACTED SELECTED FILL. 3'-0" GL 5. WIND BRACING TO END BAYS SHALL BE TO STEEL VENDORS DETAIL.

Language	English
Drawing Type	Plan
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	adobe, architectural, autocad, bausystem, building, construction system, covintec, DWG, earth lightened, erde beleuchtet, losacero, plan, plywood, section, sperrholz, stahlrahmen, steel framing, système de construction, terre s, utilitarian
