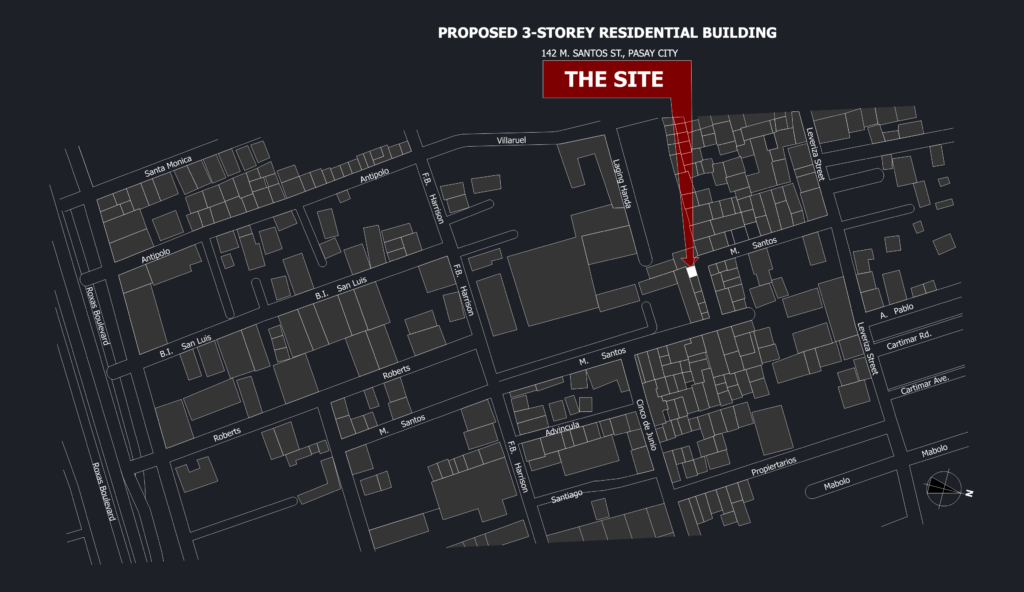

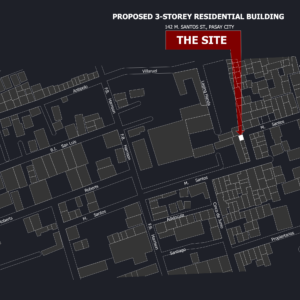

Vicinity map for a site at 142 M. Santos St. in Pasay City. Shows the general neighborhood layout for a 3-storey residential building project. Includes major surrounding streets like Roxas Boulevard, F.B. Harrison, and Leveriza Street to help with site orientation. There’s a north arrow block included as well.Standard 2D linework and hatch. All in metric.
Vicinity Map for a Proposed Residential Site in Pasay City
