VIVO Optical Ring Network Infrastructure and Fiber Layout Plan

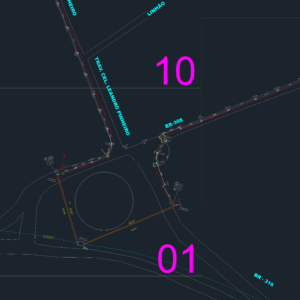

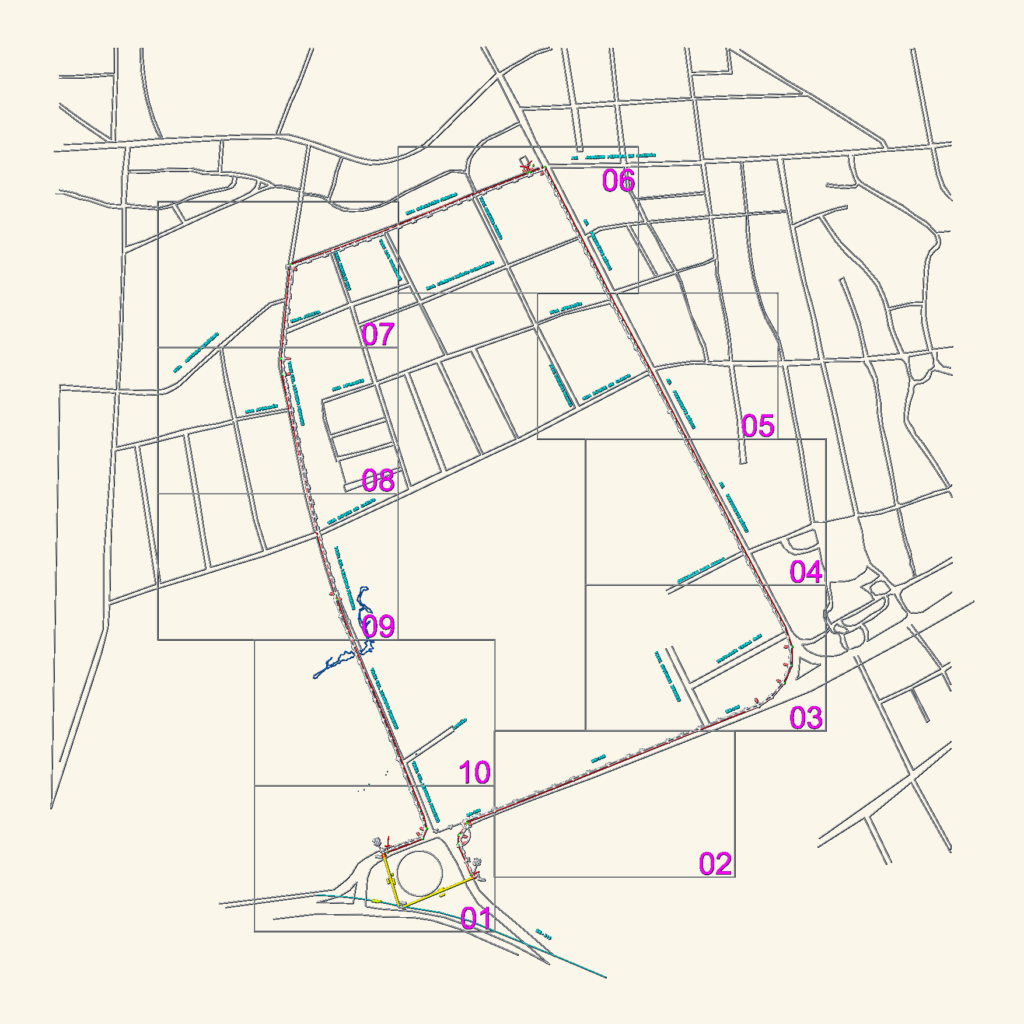

Fiber optic ring layout for the VIVO network infrastructure in Capanema. Shows the full aerial cabling path across city blocks and main highways like BR-308, incl. installation details for poles, anchorage, and identification plates. Everything is in DWG, standard telecom symbols and fiber specs included. Rede aérea e anel óptico para infraestrutura de telecomunicações.
