Wall Section DWG Section for AutoCAD

Wall Section DWG Section for AutoCAD

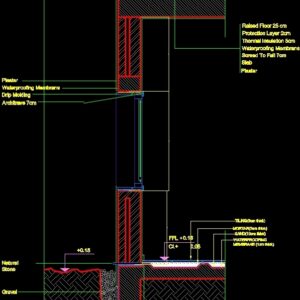

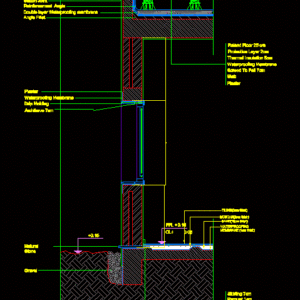

A wall section passing through a balustrade – window – slab – greenery including all the insulation and detailed layers

Drawing labels, details, and other text information extracted from the CAD file:

ffl, hrl, raised floor cm, plaster, slab, gravel, drip molding, tiling, architrave, slab on grade, double layer waterproofing membrane, thermal insulation, protection layer, angle fillet, reinforcement angle, screed to fall, silicon joint, flange, natural stone, skirting, sand, wall section, parquet, waterproofing membrane, plaster, ffl

Raw text data extracted from CAD file:

\A1;250.7782 \A1;337.2967 \A1;249.5243 FFL + CL+ 0.18 0.08 +0.15 HRL + 5.13 Raised Floor 25 cm Plaster Slab Gravel Drip Molding Tiling 2cm Architrave 7cm Slab on grade Double layer Waterproofing membrane Thermal Insulation 5cm Protection Layer 2cm Angle Fillet Reinforcement Angle Screed To Fall 7cm Silicon Joint Flange Natural Stone Skirting 7cm Sand 5cm \A1;: Wall Section (\S1#20;\H1.4286x;) \A1;D1 Parquet 1cm Waterproofing Membrane Waterproofing Membrane Waterproofing Membrane Plaster FFL + CL+ 4.13 3.83 5 5 5

Language	English
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, balustrade, betonsteine, concrete block, DWG, including, insulation, passing, section, slab, wall, walls, window
