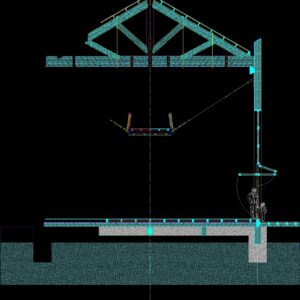

Section by circulation it includes hanging gangplank – Translucent roof with wooden structure – Armed concrete walls ,From roof until foundations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Foundation concrete, Foundation foundation beam, Stainless steel bars, Foundation basket, Cypress master beam, Send me back, Floor planing. A stop., Steel frame trapesoidal profile, Cm mm, Frame reticulated in wood., folding door. Sections, I saw empty ve mm, Double safety glass, Steel profile, Larch frame, Larch taco., larch., Chopper tinplate, painted, Larch frame., With outer recess of, Tube with running., I saw empty ve mm, Double glass, Larch fixed frame, Stirrups cm, Reinforced concrete beam, Fixed frame tepa, Fork Overlap cm., hat, Double bolt, Luma beam, Ridge, Channel steel mm, Cypress creek, Sealed glass seal., silicone, Double nut inner thread., Fixing wire outer wire., Mm steel profile, Channel steel mm. Vertical layout., Double glass, I saw empty ve mm, Drawbar, Inner thread, Clamp steel mm., Mm bolts, Double girder cypress, Diagonal cypress, Cypress beam, Through clamping bars steel clamps., Plywood board. Mm, Pipe steel pillar mm., Steel pipe, Stencil plate, Grille channels steel mm, Plot of land, Built-in focus cm, Cypress envy, American sky pendant, Plot of land, Thermal insulation mm, Cypress envigado cm, External plywood board mm, Luma beam, Concrete foundation beam cm

Raw text data extracted from CAD file:

Hormigón de Fundación 250 kg/m2 Viga de Fundación Corrida 14 Barras acero estriado \fCentury Gothic|b0|i0|c0|p34;\H3.75;Ø=20mm Canastillo de Fundación Viga Maestra Ciprés 6" x 16" Envigado Luma 4" x 8" @ 50cm Entablado de piso. Luma 2" x 6" a tope. Marco acero Perfil Trapesoidal 17 cm x 9 cm, e= 10 mm Marco Acero, reticulado en madera. Puerta abatible. 2 tramos. e=20mm. vI 5mm, vacío 10 mm, vE 5 mm Termopanel, doble vidrio de seguridad Marco perfil acero C, canal 125 x 50 mm , e= 2mm Marco Alerce Taco 1" x 1" Alerce. 2" 1/2 x 1" 1/2, Alerce. Cortagota hojalata. e=0.4mm pintado Marco Alerce. 4" x 2" 1/2 , con rebaje exterior de 1" Tubo acero, con rodaje. vI 5mm, vacío 10 mm, vE 5 mm Termopanel, doble vidrio. e=20mm. Marco Fijo Alerce 2" x 16" Estribos Ø= 20, @ 50 cm Viga Hormigón Armado 170 kg/m3 Marco Fijo Tepa 2" x 16" Horquilla Ø= 5 mm. traslape 15 cm. Gorro Zincado, e=0.5mm Doble Perno de anclaje, Ø= 10mm. Viga Luma 4" x 12" Viga Luma 6" x 16" Cumbrera hojalata Zincada, e=0.5mm Canal acero C, 60 x 20 mm, e= 0.5 mm Costaneras Ciprés 2" x 6" , @ 80 cm Burlete PVC, Sellado de vidrios. Silicona e=2mm Doble tuerca hilo interior. Barra de Fijación Acero, e=20mm, hilo exterior. Perfil Acero Z , e= 1.5 mm Perfil acero Omega, e= 1,0 mm Canal acero C, 20 x 60 mm. disposición vertical. Termopanel, doble vidrio. e=20mm. vI 5mm, vacío 10 mm, vE 5 mm Barra de Tracción Acero, e=20mm, Hilo interior Abrazadera acero e= 15 mm. 4 Pernos de fijación, Ø=10 mm 4 Pernos de fijación, Ø=10 mm Doble viga Ciprés 8" x 12", Diagonal Ciprés 12" x 8" Viga Ciprés 8" x 16" amarre a través de barras y abrazaderas acero. Tablero contrachapado. e=18 mm Tubo Acero Pilar baranda, Ø=70 mm. e=2mm. Tubo acero soldado, Ø= 100 mm, e=2mm Pletina Atiezador acero, e= 2mm Retícula Canales Acero C, 160 x 50 mm, e= 2 mm Entablado de piso, Mañío 1" x 4" Foco Embutido Ø=10 cm Envigado Ciprés 2" x 6" @ 50 cm Cielo Americano 30 x 30, colgante Entablado de piso, Mañío 1 1/2" x 4" Aislante térmico e=80 mm Envigado de piso, ciprés 4" x 6" @ 80 cm Tablero contrachapado exterior e=20 mm Viga Luma 10 " x 6" Viga Fundación Hormigón Armado, 30 x 50 cm
