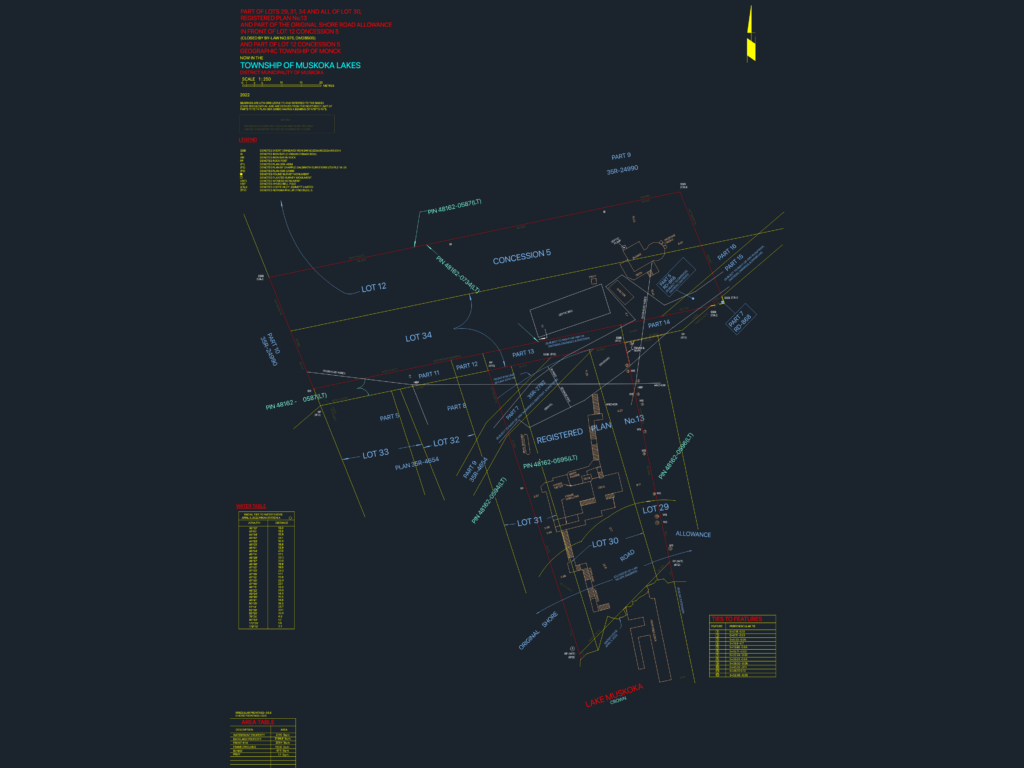

1:250 Scale Legal Survey and Site Plan for Lake Muskoka Waterfront Lot

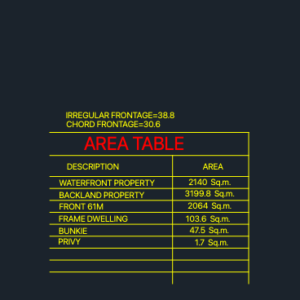

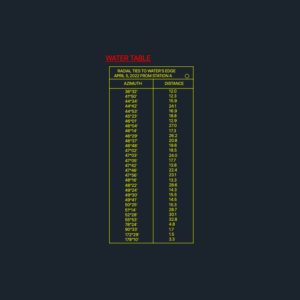

Comprehensive legal survey for a waterfront property on Lake Muskoka, including existing dwellings and proposed dock. Features an area table for structures (bunkie, privy, main house) and detailed radial ties to the water’s edge. Boundary information covers PINs, bearings, and distances for the geographic township of Monck

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
N/A
Units
Metric
Area
2500 – 4999 m² (26909.8 – 53808.7 ft²)
Features
Deck / Patio, Parking, Garden / Park
Uploaded by
DWG Master
Category
City Plans, Public Facilities
Published
May 15, 2026
Price $3.95
