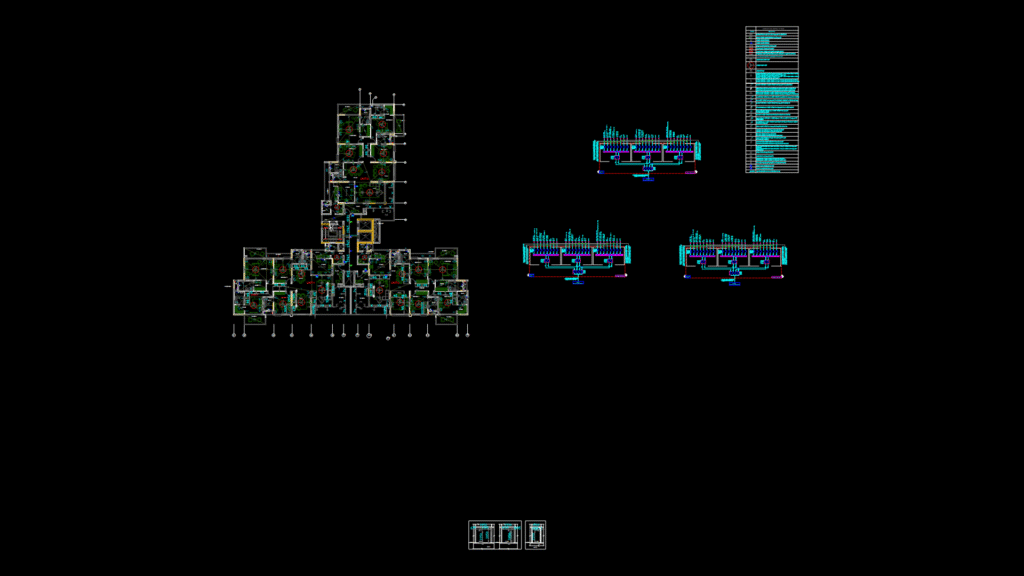

Complete electrical plan for the 3rd floor of Block-G at Brigade Cosmopolis residential development. This layout covers three apartment units with electrical distribution systems and fixture placements throughout all rooms.
Key Components:
– Distribution boards (DB1, DB2, DB3) with 8-way TPN configurations and 40A DP RCCBs (30mA)
– Lighting circuits using 2×2.5+1×1.5 sqmm FRLS wires in 19mm conduits
– Power circuits using 2×4.0+1×2.5 sqmm FRLS wires in 25mm conduits
– Air conditioning provisions with dedicated circuits and outdoor unit locations
– Comprehensive socket outlet placement including specialized outlets for kitchen appliances (fridge, cooking range, mixer)
– Data, telephone, and TV points strategically positioned in living areas and bedrooms
– Video door camera/phone system at apartment entrances
The drawing includes detailed legends, room labels, and circuit identification. Multiple dwelling units feature master bedrooms, family rooms, servant quarters, and balconies with tailored electrical provisions for each space function.
