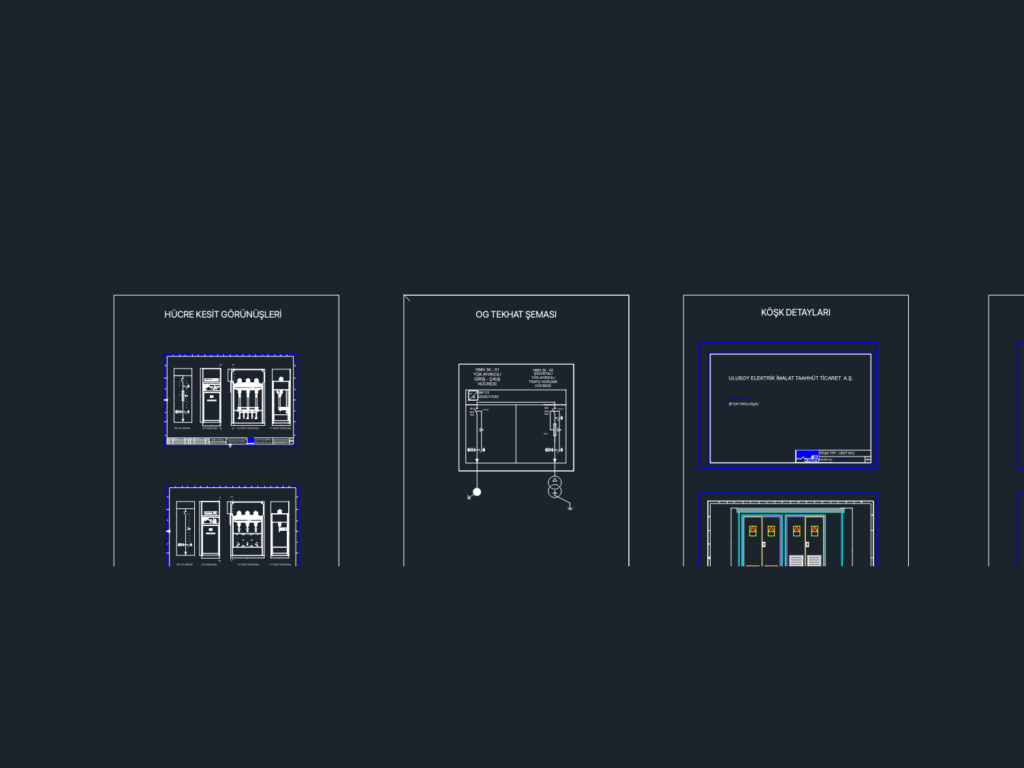

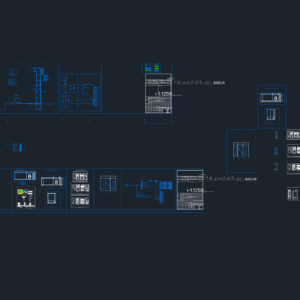

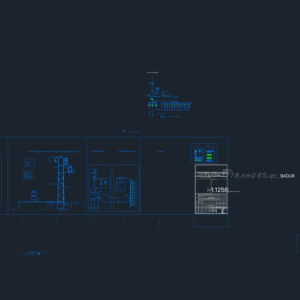

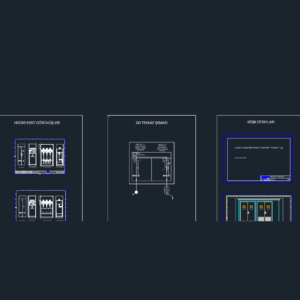

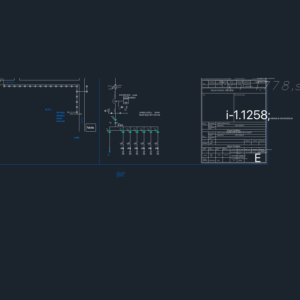

Complete 400kVA transformer station project for an industrial facility. Incl. single-line diagrams (AG Tekhat), detailed compensation calcs for 605 kVAR, and tower structure elevations. You’ll find the main distribution board layout, grounding plans, site layout (vaziyet planı), etc Dims & scales are set for 1/50 printing. Mentions 11-step compensation, 900kW installed power, & technical current ratings. Standard electrical engineering set in Turkish (Türkçe trafo posta projesi).
400kVA Transformer Post Electrical Project DWG with Single Line & Panels
