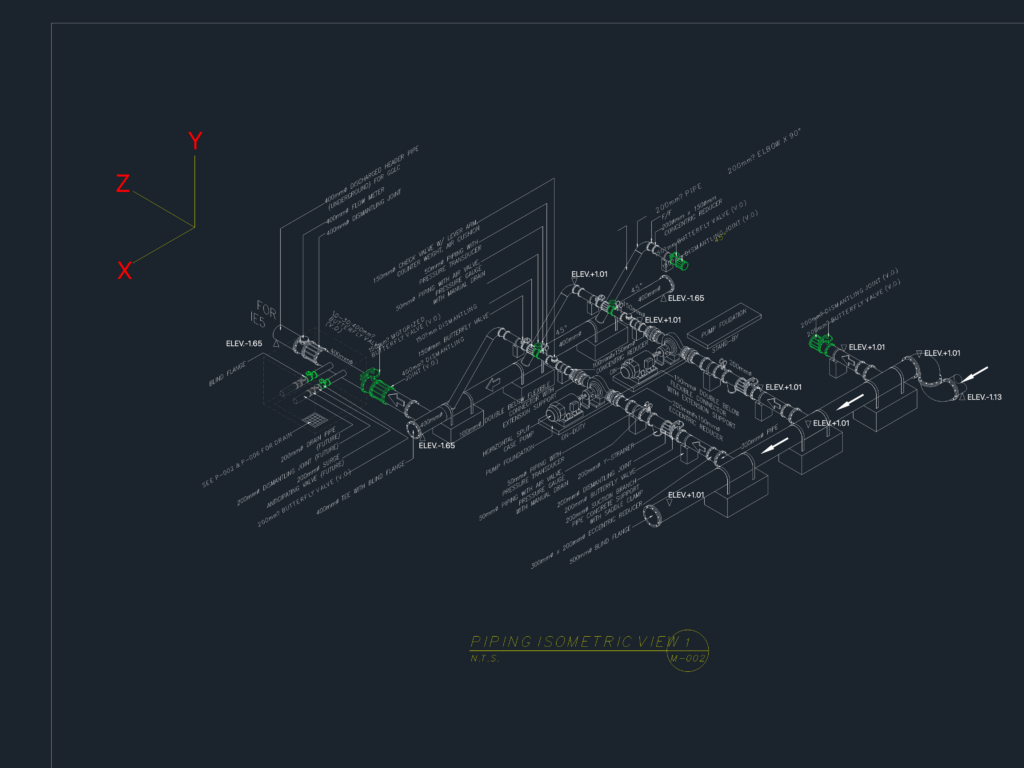

Piping isometric view for a pump room or water treatment plant setup. It’s got butterfly valves from 150mm up to 400mm, motorized units, and dismantling joints. We’ve included the pump foundation blocks and various reducers too. Metric units, elevations are marked throughout.
400mm Piping Isometric with Butterfly Valves & Pumps
