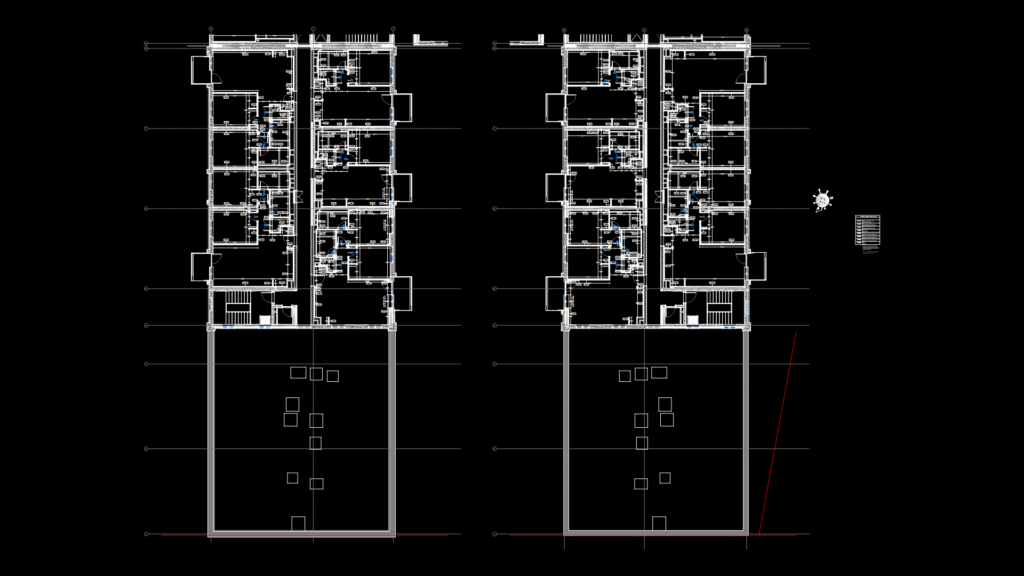

Partial drywall construction plan for the 7th floor of the Belgrade Waterfront Plot 23 residential development. The drawing details the interior partition system with a focus on gypsum board wall assemblies.
Key Wall System Components:
– Standard gypsum boards (12.5mm thickness)
– Moisture-resistant gypsum boards for wet areas
– Fire-resistant gypsum boards for code compliance
– Metal substructure framing system
– Mineral rock wool thermal insulation in three variations (3cm, 5cm, and 8cm thicknesses)
Special Requirements
All apartment walls adjacent to stairwells, elevators, expansion joints, and commercial spaces incorporate 8cm thermal insulation within 7.5cm substructure framing. The drawing includes specific wall type identifiers (DW 1.1a, DW 1.2b, etc.) corresponding to the various assembly configurations and performance requirements.
The plan is drawn at 1:50 scale in metric units, with apartment layouts clearly indicated, including bathroom locations, corridor systems, and access points. Fire safety features are integrated into the wall assemblies where required by building codes.
