AAC Block Wall Layout and Masonry Quantity Detail DWG

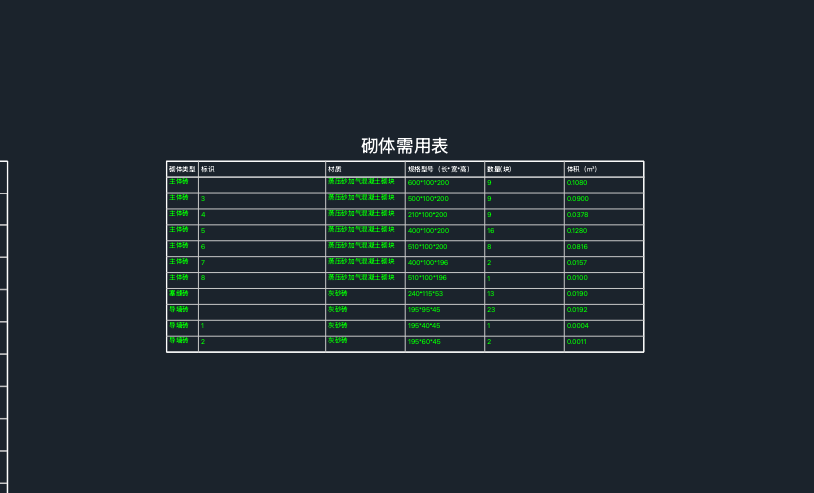

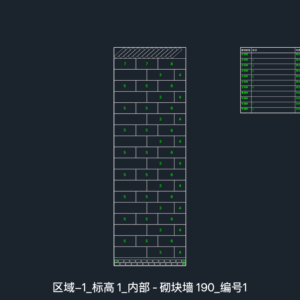

Masonry wall layout showing quantities for interior 190mm block walls. Includes specific brick types like autoclaved aerated concrete (AAC) and sand-lime bricks with a detailed requirement table. You’ll find dimensions for various block sizes—600x100x200, 210x100x200, and more—plus calculations for volume in cubic meters. The drawing marks specific zones (1 through 4) with arrows indicating wall sections. We’ve included the block counts for both the main masonry and the filler/sealing bricks.Text is Chinese. 砌体工程量表及内墙布置图。包含蒸压加气混凝土砌块和灰砂砖的详细规格、数量及体积计算。内容涉及190mm厚分户墙及内部隔墙细节。
