Access Road and Ditch Detail Section with Grouted Riprap

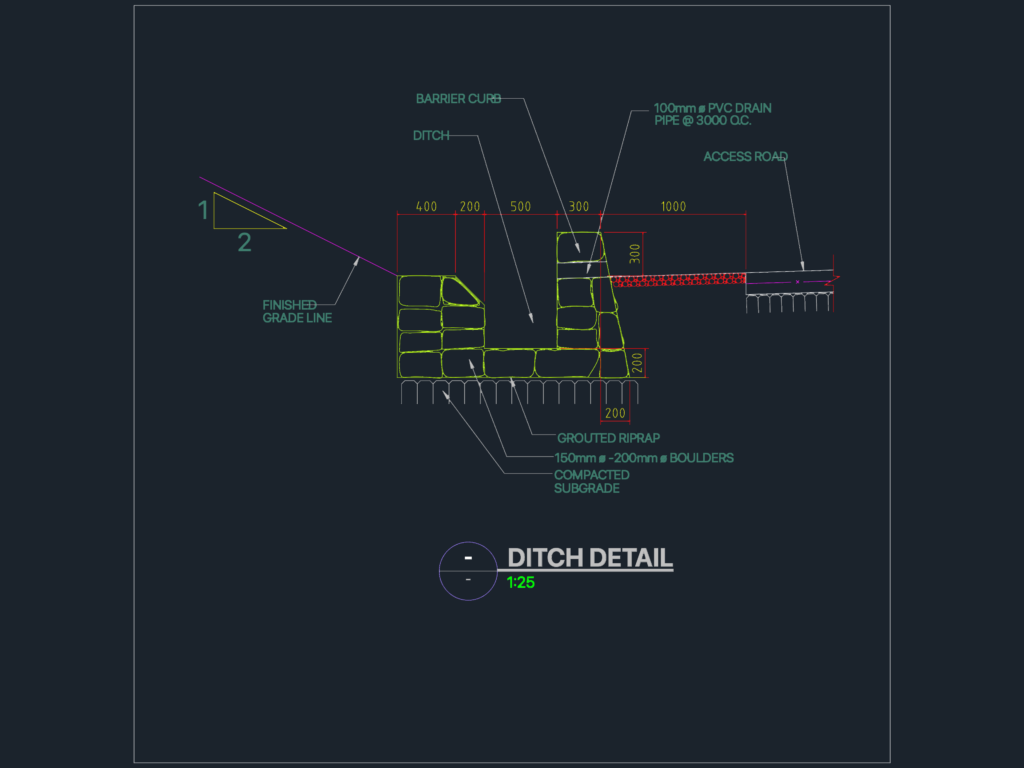

Technical section detail of a road ditch with grouted riprap, 100mm PVC drain, and boulder subgrade at 1:25 scale.

ditch detail section for an access road at 1:25 scale. includes grouted riprap, boulder sizing, & 100mm pvc drain pipe specs.

FREE

File Details

File Type
DWG
Type
Section
Language
English
Materials
Concrete, Masonry, Plastic
Units
Metric
Uploaded by
Eng_Plans
Category
Public Facilities, Roads, Bridges and Dams
Published
Jul 15, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

access road barrier curb boulder lining CAD section civil engineering ditch detail drainage section DWG grouted riprap pvc drain road construction
