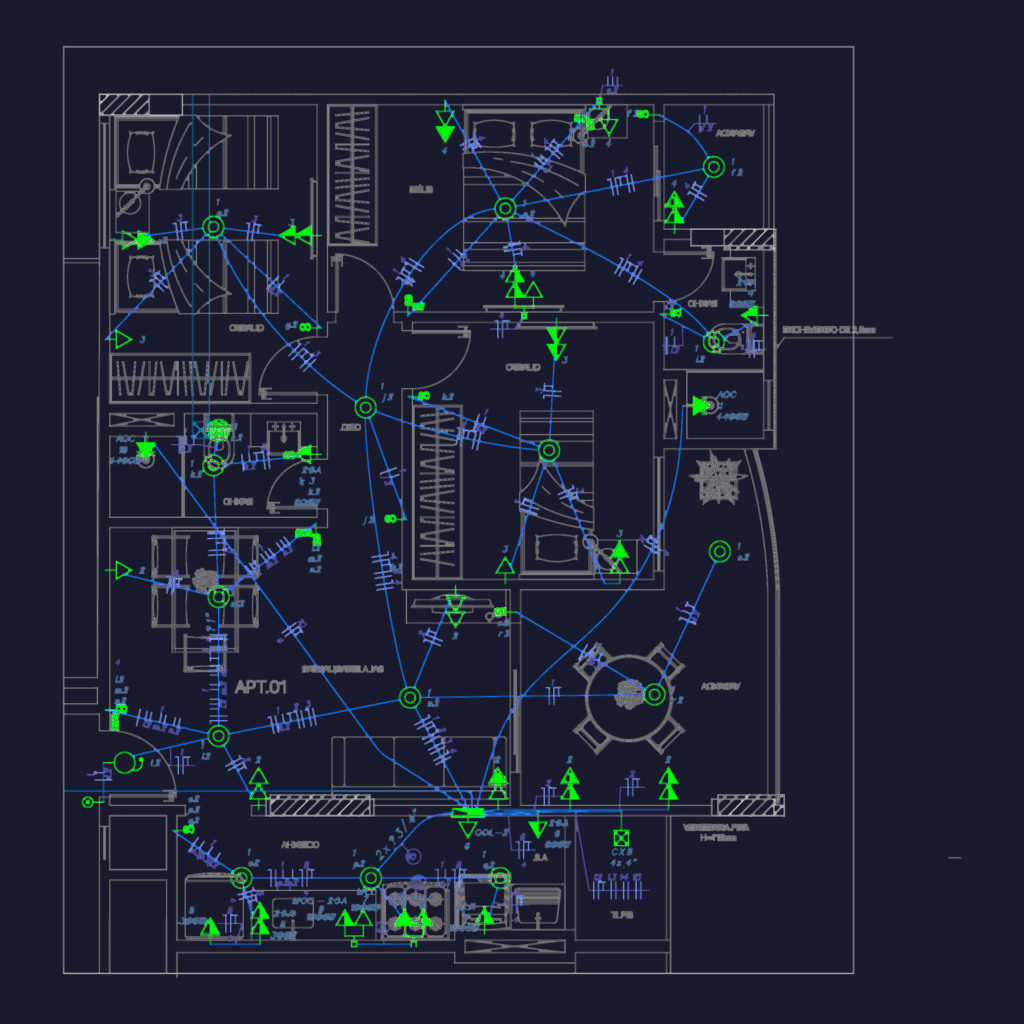

Electrical layout for a stadnard residential unit (Apt 01) including living room, bedrooms, kitchen and bathrooms. We’ve all power points using NBR 14136 hexagonal outlets (10A/20A) at specific mounting heights, mostly 30cm for low and 120cm for mid-level. Includes points for 4400W bifasic showers, split AC units, and dedicated kitchen circuits for microwaves and washing machines. Legend covers sensors, 18W/100W LED lighting, and autonomy-rated emergency blocks (200lm). Conduit specs range from 3/4″ corrugated PVC to rigid wall-mounted types with full wiring annotation for phase, neutral, and ground. good for anyone doing multi-family residential MEP in Brazil. Projeto elétrico completo para apartamento residencial com legenda e simbologia.
Apartment Electrical Plan with NBR 14136 Symbols
