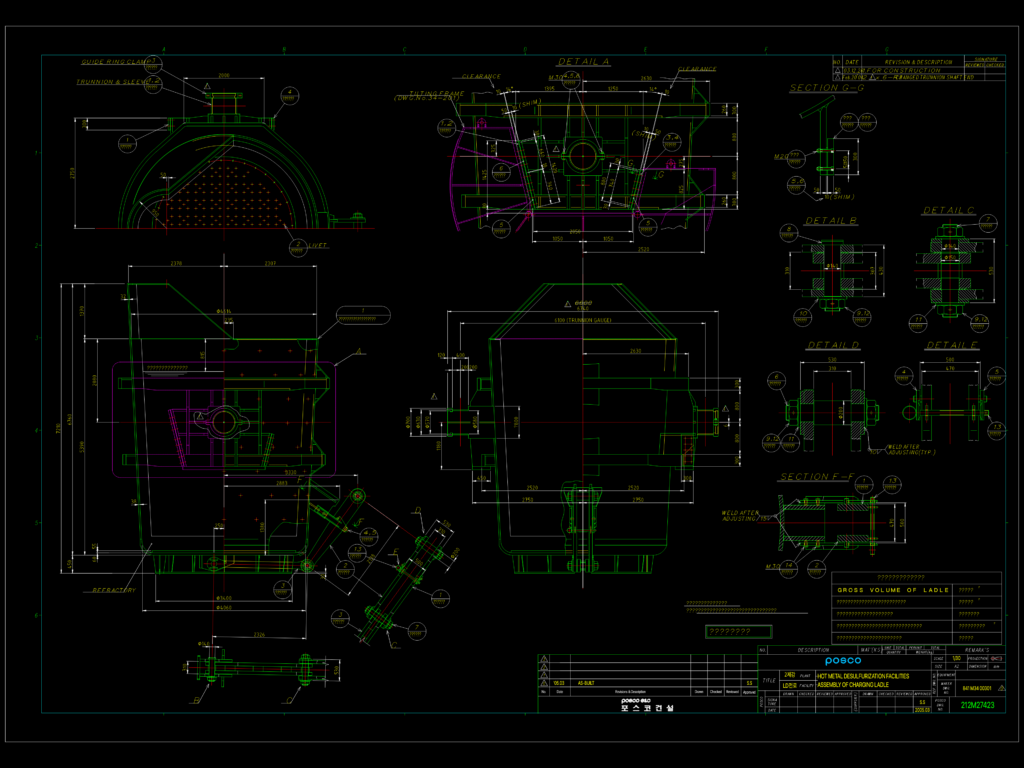

Assembly drawing for a large industrial charging ladle used in steel plants, specifically for hot metal desulfurization facilities. Incl. full elevations, plan views, section details, & specialized component details like trunnions, sleeves, & guide ring clamps. We’ve also included the refractory info and gross volume specs etc.
Assembly of POSCO charging ladle for hot metal desulfurization dwg
