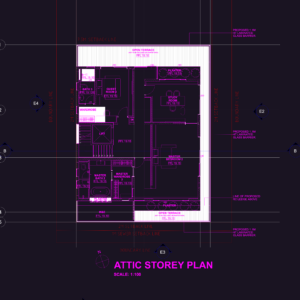

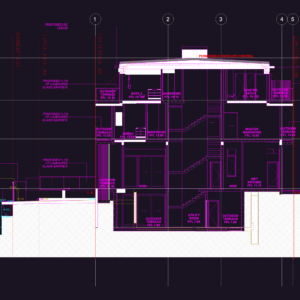

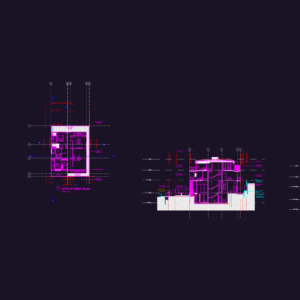

Attic storey layout & roof plan for a multi-story house. We’ve included full cross-sections A-A and B-B showing floor levels from the basement (+7.65) up to the roof (+23.00). Attic features: master suite, guest room, study, and open terrace area. Technical specs cover setbacks, 2.4m at the front, 7.5m at the rear, and the 1.0m sewer reserve line. Callouts for 1.1m laminated glass barriers, RC ledges, and non-reflective metal roofing. Grid lines 1-20 are set up with FFL markers for every floor.Dimensions are metric, mostly in mm.
Attic Floor Plan with Roof Details and Architectural Sections
