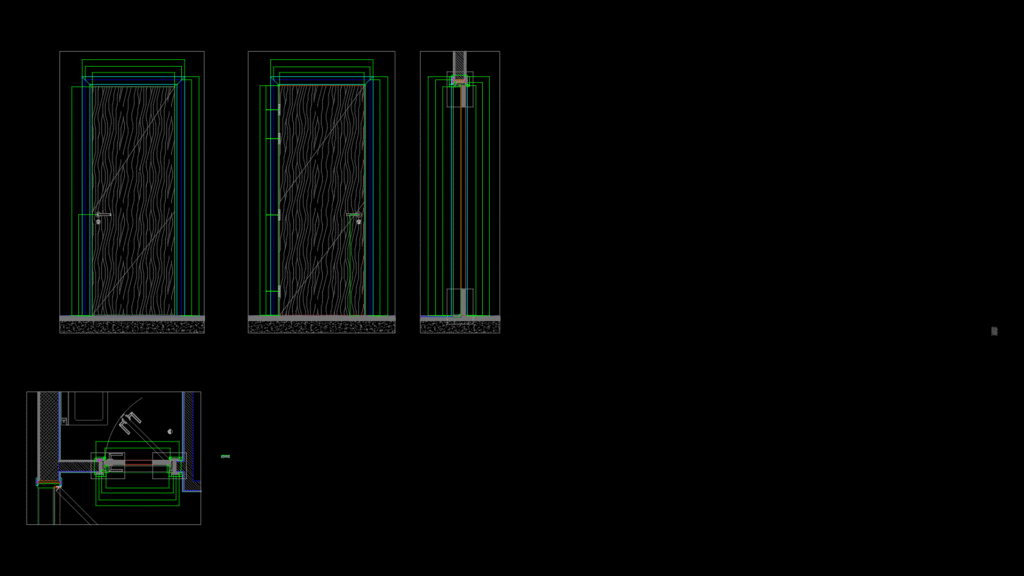

This shop drawing details a custom bathroom/toilet storage door assembly for Woods Industries LLC’s commercial project. The drawing features multiple views including front elevation, side elevation, and plan view of the door installation. The door features a wooden veneer finish with distinctive vertical grain pattern and measures approximately 3.2 ft in width by 7.5 ft in height, with a frame thickness of 2.3 inches. The door assembly includes integrated hinges, latch mechanism, and architrave details with specific junction details at floor level. The storage solution is designed for a commercial bathroom setting with proper waterproofing considerations at the base. All components are dimensioned in imperial units with precise clearances for proper operation. The design balances functional requirements with aesthetic considerations appropriate for a high-traffic commercial restroom environment, incorporating materials that withstand moisture exposure while maintaining visual appeal.
Bathroom Storage Door Detail Plan & Elevation for commercial NFR
