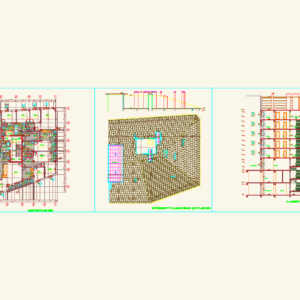

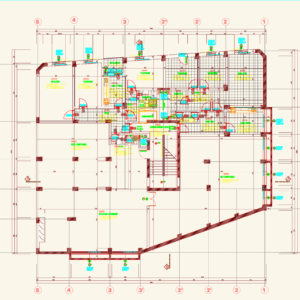

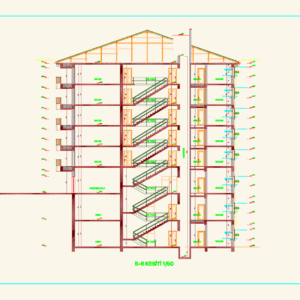

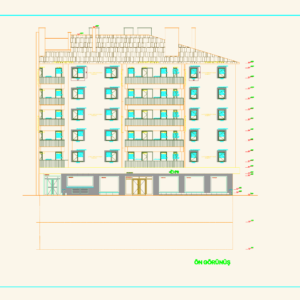

Renovation drawings for a multi-story employee housing (lojman) building in Büyükesat. Full architectural set contains floor plans from the basement through to the roof at 1/50 scale, incl. elevations and the like. You get front, side, and rear elevations plus A-A and B-B cross-sections. Standard unit layouts show salons, balconies, and kitchens; also covers the basement boiler room and water tank. Büyükesat lojman binası tadilat projesi mimari çizimleri.
Büyükesat Lojman Housing Renovation Drawing Set
