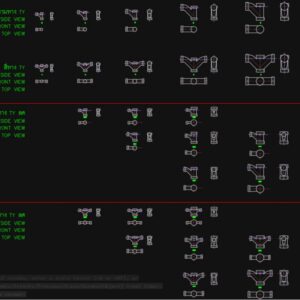

CAST IRON HUBLESS TYPE and FITING
CAST IRON HUBLESS TYPE
– PIPE CAST IRON
– COUPLINGS
-ONE EIGHTH BEND 45
-ONE QUARTER BEND 90
-LONG SWEEP BEND
-ONE QUARTER BEND WITH HEEL INLET
-Y BRANCHES,SINGLE and DOUBLE
-T BRANCHES,SINGLE and DOUBLE
-COMBINATION Y and 1/8 BEND,SINGLE and DOUBLE
-REDUCER
-CLEANOUT
| Language | English |
| Drawing Type | Block |
| Category | Bathroom, Plumbing & Pipe Fittings |
| Additional Screenshots |
     |
| File Type | dwg |
| Materials | Steel |
| Measurement Units | Metric |
| Footprint Area | N/A |
| Building Features | A/C, Pool |
| Tags | cast iron pipe, castiron, coupling, fitting, hubless type, pipe |
