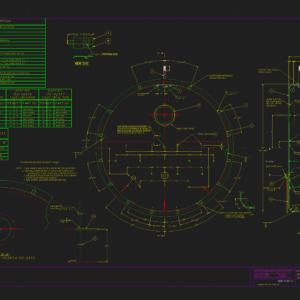

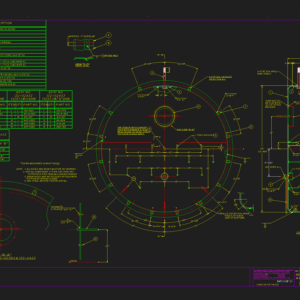

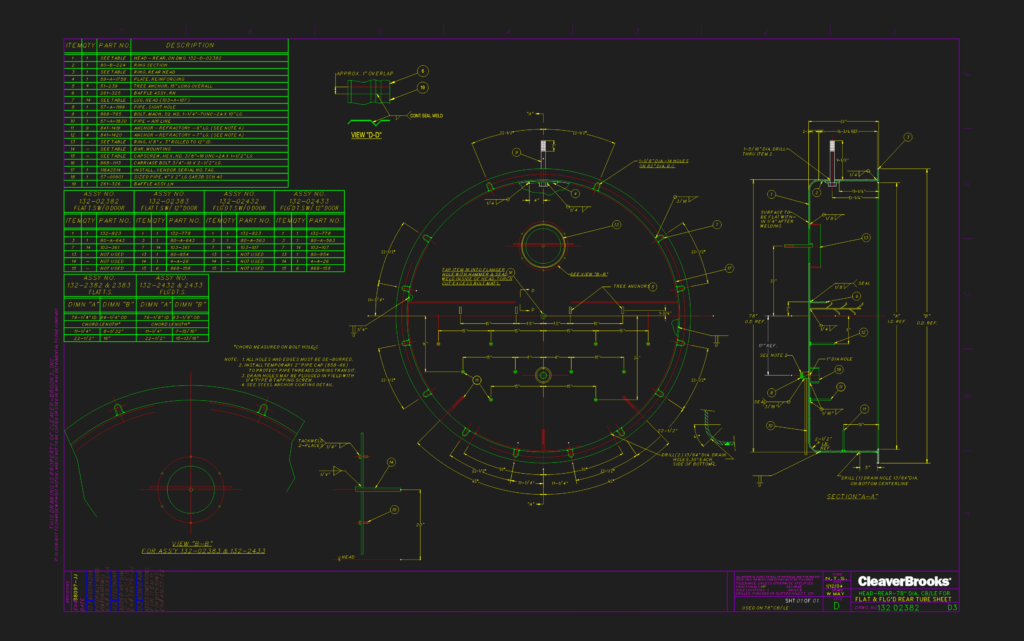

Cleaver-Brooks rear head drawing for a 78″ diameter boiler. Includes Section A-A, plus B-B and D-D views with all the anchor and weld details etc We’ve got the full bill of mateerials for both flat and flanged tube sheets.
Cleaver-Brooks head-rear-78″ dia. CB/LE for flat & flg’d rear tube sheet
