Two-story community center layout featuring architectural floor plans and a site implantation plan on sloped terrain. The first floor includes a 105m2 community hall, kitchen, restrooms, and a deck area. The second floor contains a classroom and an internet room, both opening onto balconies.

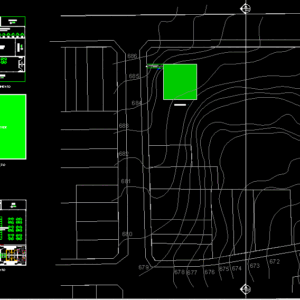

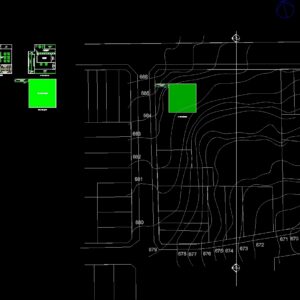

The site plan shows the building footprint situated on a lot with topographic contour lines labeled from 670 to 686. Technical details include accessibility ramps at an 8.33% slope with 1.1m guardrails and a designated green roof area. Metric units are used throughout, with room areas labeled in square meters. Includes implantação and salão comunitário.
