Comprehensive Gym Facility Plans with MEP & Fire Safety Systems

Complete Commercial Gym Facility Project

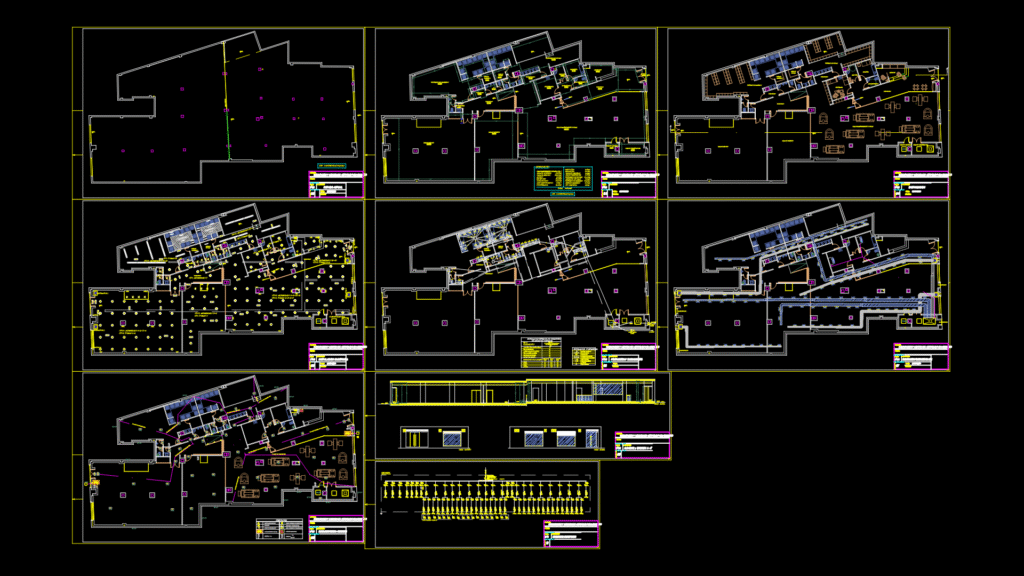

This multi-sheet technical drawing package details a 781.6m² commercial gymnasium facility with complete MEP (Mechanical, Electrical, Plumbing) systems and fire safety infrastructure. The drawings include floor plans, building sections, elevations, and specialized system layouts.

Main Facility Areas:
– Spinning Studio (65.77m²)
– Aerobic Studio (152.00m²)
– Weight Training Area (191.05m²)
– Men’s & Women’s Changing Rooms (71.25m² & 68.06m² respectively)
– Dedicated Treatment Rooms: Massage (8.00m²), Physiotherapy (12.25m²)
– Specialized amenities: Saunas for men and women, UV tanning room (4.56m²)
– Accessibility features: Wheelchair-accessible bathroom (3.16m²)
– Technical spaces: Mechanical room (8.53m²), Boiler room (4.42m²)

The drawings incorporate multiple building systems including:

1. Electrical Distribution – Complete circuitry with emergency lighting (E+S), volume classifications for wet areas, and a 125A main distribution panel
2. Plumbing & Drainage – Water supply lines, fixtures, and drainage infrastructure
3. HVAC – Climate control systems including mechanical ventilation
4. Fire Safety – Fire-rated partitions (RF-60/RF-180), extinguishers (CO₂ & 21A-113B), emergency lighting, evacuation routes (<25m)

The facility features multiple level changes with careful accessibility planning, including a ramped entrance approach (+0.48m to +0.30m to +0.18m). The project addresses specific commercial fitness facility requirements including proper equipment spacing, emergency egress pathways, and specialized mechanical systems for high-occupancy athletic spaces.
