Detail Manhole DWG Detail for AutoCAD

Detail Manhole DWG Detail for AutoCAD

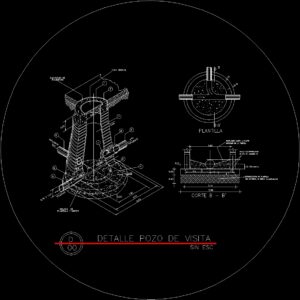

Detail sanitary well visit with two tributaries

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Wall template, Max., Cast of, effluent, Influential, Influential, pavement, Elevation of, With material in brena, template, Cut b ‘, Stabilization of template, Chamfers up the side, Top of the pipe, welded Mesh, Of caliber, diameter, Bead cap, Detail well of visit, Without esc

Raw text data extracted from CAD file:

PLANTILLA Y MUROS 0.60 MAX. COLADO DE 0.76 A 1.07 EFLUENTE 8 5 0.05 0.10 5 INFLUENTE 0.20 0.91 0.20 2.10 2.40 1.50 4 0.15 0.05 7 6 0.28 8 3 INFLUENTE 5 PAVIMENTO ELEVACION DE 2 1 CON MATERIAL EN BRENA (revestimiento) B' 1.50 PLANTILLA 2.10 2.40 CORTE B - B' 0.40 0.15 0.20 ESTABILIZACION DE PLANTILLA CHAFLANES HASTA LA PARTE SUPERIOR DE LA TUBERIA MALLA ELECTROSOLDADA DE 6"x 6", CALIBRE 10 1/2 Diametro 0.30 0.15 B TAPA BROCAL DETALLE POZO DE VISITA 00 D SIN ESC

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, DWG, kläranlage, manhole, record, Sanitary, treatment plant, visit
