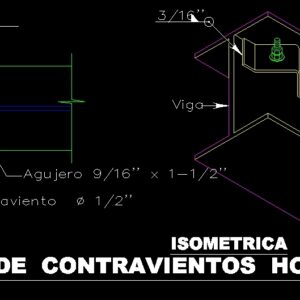

Detail Of Fixing Of Upwind Horizontal In Metal Beam DWG Detail for AutoCAD

Detail of fixing of upwind fhorizontal in metal beam – Used to stiffen metal structural marcs by mean of SWR

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

hole, windbreaker, beam, Fixing of horizontal windscreens, plant, scale:, isometric

Raw text data extracted from CAD file:

\A1;1\S1/2;” \A1;1\S1/2;” Agujero 9/16” x 1-1/2” 3” x 1/4” 3/16” 3” x 1/4” Contraviento d 1/2” 3/16” Viga 5 5 FIJACION DE CONTRAVIENTOS HORIZONTALES PLANTA ESCALA: 1-1/2″=1′ ISOMETRICA \A1;Viga
