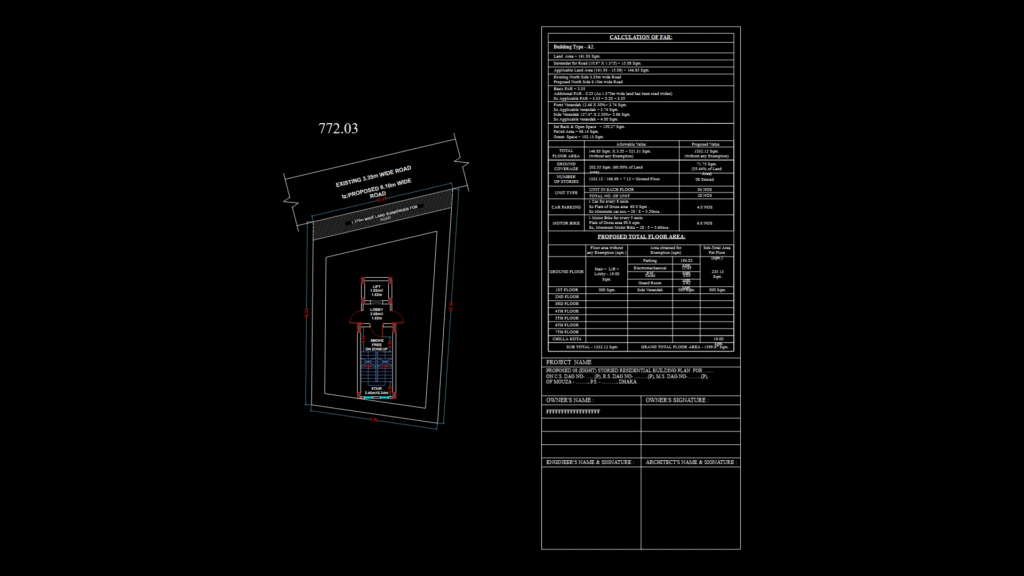

This site plan presents the ground-level layout of an eight-story residential apartment building with detailed FAR (Floor Area Ratio) calculations. The irregularly shaped site covers 161.93 sqm with 15.08 sqm surrendered for road widening, resulting in an applicable area of 146.85 sqm. The plan features a lift (1.83m×1.52m), stairwell (2.45m×5.34m), and lobby area (2.08m×1.52m). The building is designed with a 3.55 FAR value, accommodating 28 residential units (4 per floor) with ground-floor parking for 4 cars and 6 motorcycles. The structure includes dedicated spaces for an electromechanical room (11.45 sqm), guard room (3.42 sqm), and toilet facilities (3.05 sqm). The design incorporates a road-widening provision, transforming the existing 3.35m road into a proposed 6.10m thoroughfare along the northern property line. The total floor area without exemptions is 1332.12 sqm, with a ground coverage of 71.75 sqm (55.44% of land area), and setbacks providing 150.27 sqm of open space.
Eight-Story Residential Building Site Plan with far Calculation
