Facade Of Bricks – Details DWG Section for AutoCAD

Facade Of Bricks – Details DWG Section for AutoCAD

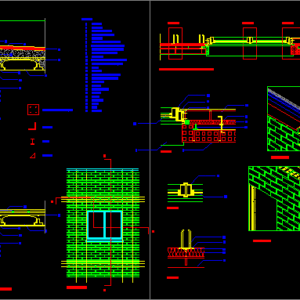

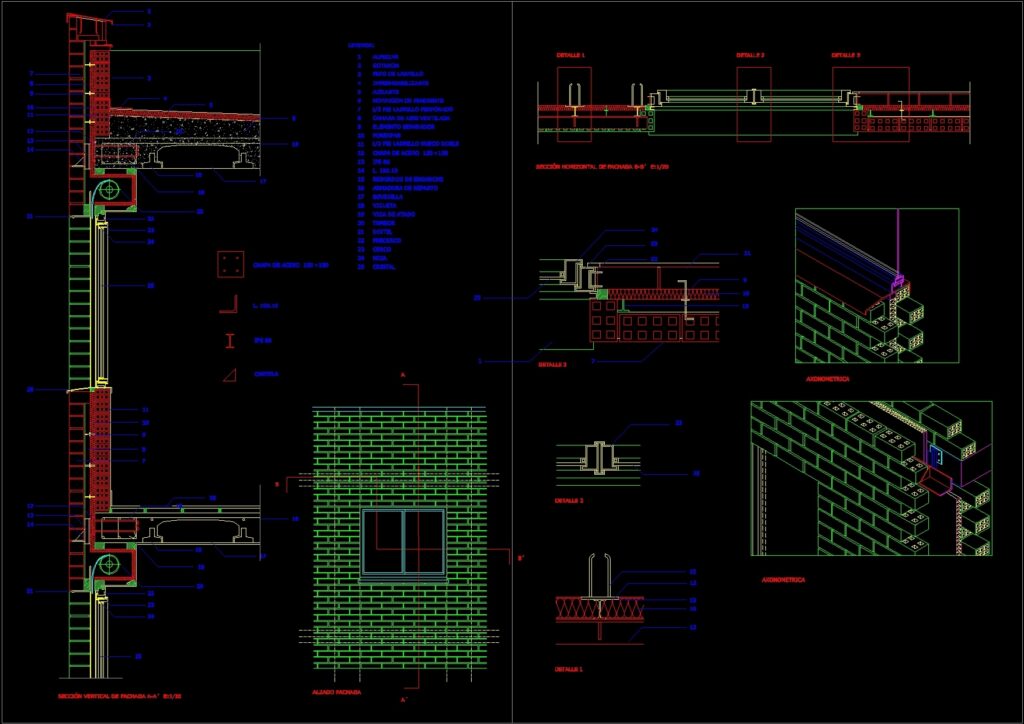

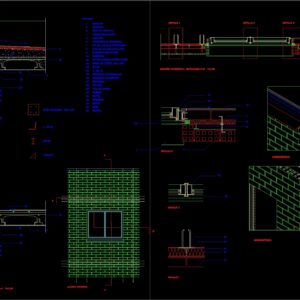

Constructive sectionof brick’s facade – Axonometric views

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Vertical section of facade, detail, Horizontal section of facade, Front elevation, detail, Axonometric, legend:, ledge, Goteron, Waterproofing, insulating, Slope concrete, Ventilated air chamber, Separator element, Porexpan, sheet steel, Ipe, Round coupling, Armor cast, Vault, joist, Tying beam, drum, lintel, I preclude, siege, sheet, crystal, Bib overalls, Pierced brick foot, Double hollow brick, Ipe, sheet steel, Card

Raw text data extracted from CAD file:

SECCIÓN VERTICAL DE FACHADA A-A´ E:1/20 DETALLE 3 DETALLE 2 DETALLE 1 SECCIÓN HORIZONTAL DE FACHADA B-B´ E:1/20 ALZADO FACHADA DETALLE 1 DETALLE 2 DETALLE 3 AXONOMETRICA AXONOMETRICA A A´ B B´ 1 2 3 4 5 18 17 19 20 25 24 11 10 7 9 8 25 15 6 16 7 8 9 10 11 12 13 14 21 26 18 17 19 15 16 12 13 14 20 21 23 22 24 23 22 LEYENDA: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 ALFEIZAR GOTERON IMPERMEABILIZANTE AISLANTE HORMIGON DE PENDIENTE CAMARA DE AIRE VENTILADA ELEMENTO SEPARADOR POREXPAN CHAPA DE ACERO 150 150 IPE 80 L. 100.10 REDONDOS DE ENGANCHE ARMADURA DE REPARTO BOVEDILLA VIGUETA VIGA DE ATADO TAMBOR DINTEL PRECERCO CERCO HOJA CRISTAL PETO DE LADRILLO 1/2 PIE LADRILLO PERFORADO 1/2 PIE LADRILLO HUECO DOBLE 25 7 IPE 80 L. 100.10 13 9 10 11 25 1 22 23 24 25 23 13 CHAPA DE ACERO 150 150 + 10 13 12 15 CARTELA +

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, axonometric, block, brick, brick walls, bricks, constructive, constructive details, details, DWG, facade, mur de briques, panel, parede de tijolos, partition wall, section, views, ziegelmauer
