Fire extinguisher location plan for the Charlotte Convention Center

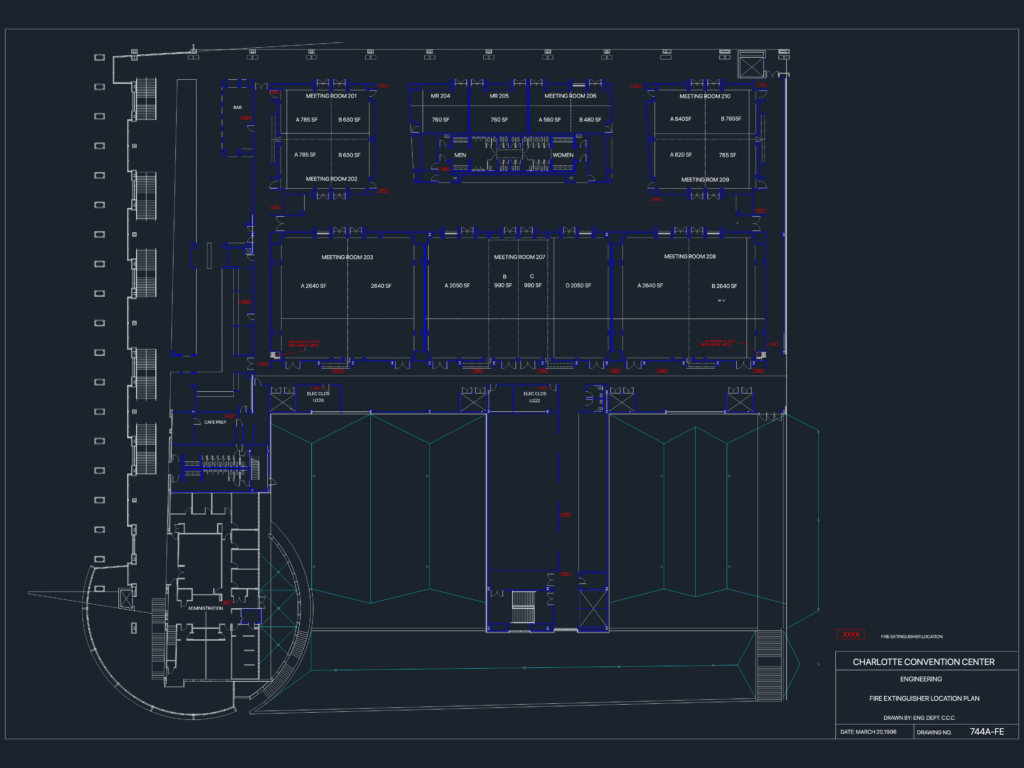

CAD floor plan showing meeting rooms 201-210 with red fire extinguisher symbols and room square footage.

Life safety plan showing FE locations & room capacities for meeting rooms 201-210

FREE

File Details

File Type
DWG
Type
Plan
Language
English
Materials
N/A
Units
Imperial
Area
Over 5000 m² (53819.5 ft²)
Uploaded by
DWG Master
Category
Misc Plans & Projects
Published
May 14, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

Charlotte Convention Center facility management FE layout fire extinguisher floor plan Life Safety meeting rooms safety plan
