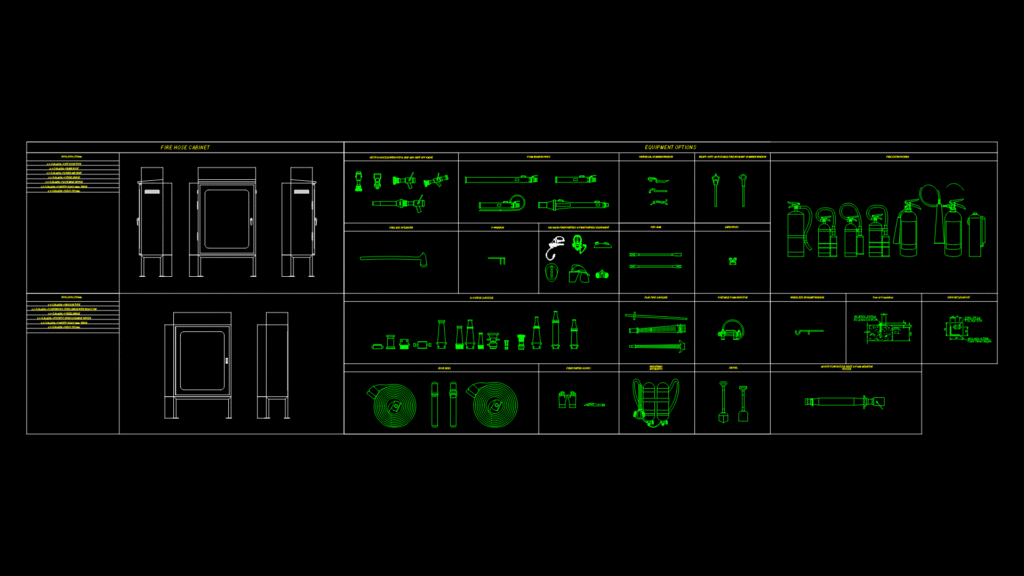

This comprehensive fire safety equipment drawing details a steel fire hose cabinet assembly (1000x800x300mm) with associated firefighting equipment. The cabinet features 16 BWG steel sheet construction with red paint finish, phosphate pre-treatment, and baked coating. Key components include a safety glass window (4mm tempered), steel hinges, lockable device, and cast brass angle hose valve (2.5″). The drawing shows both indoor and outdoor installation variants, with the outdoor type featuring a rain roof, louvered air vent, and 300mm legs. Mounting details illustrate expansion bolt anchoring (4xM12x200mm) with cast steel angles (40x40x4mm). Supplementary firefighting equipment options include a Protek adjust-flow nozzle (Style #368) with pistol grip, foam branch pipes, universal spanner wrenches, gas masks, fire extinguishers, portable foam inductors, and breathing apparatus. The assembly meets FM approval requirements for commercial fire protection installations.
Fire Hose Cabinet Assembly & Equipment Detail Drawing
