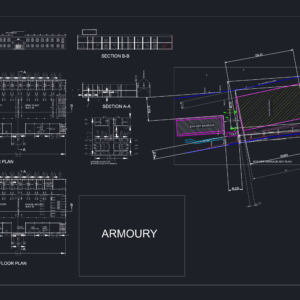

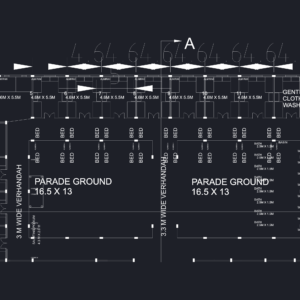

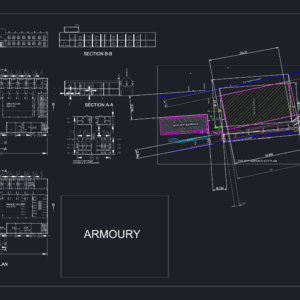

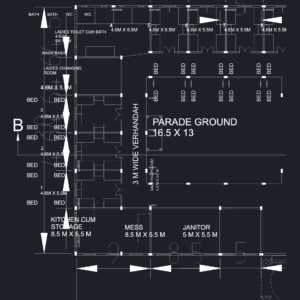

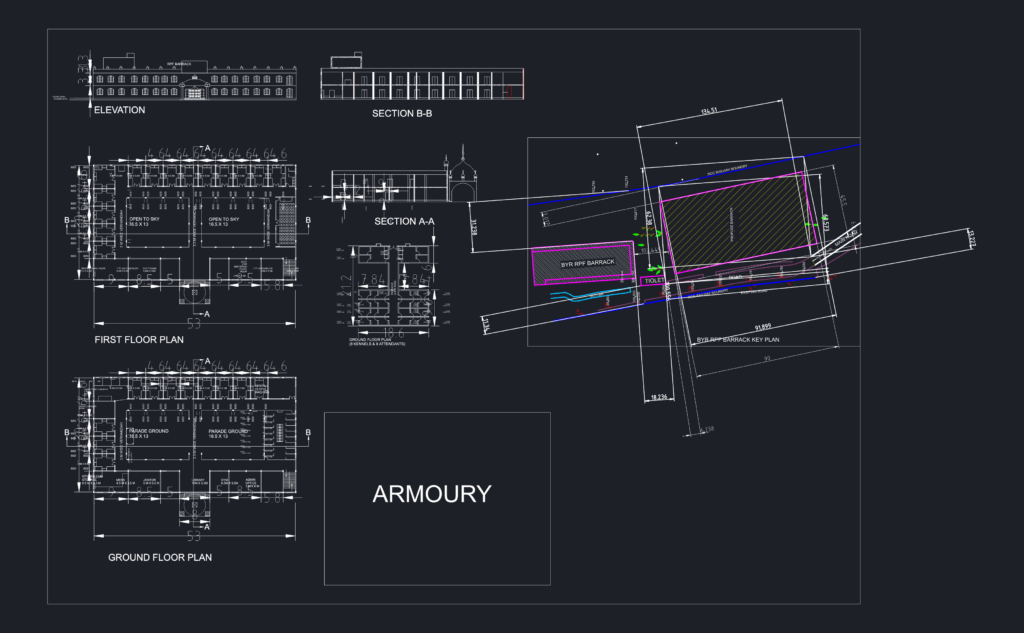

Full set for an RPF barrack complex incl. ground & first floor plans, the main building has everything from a mess & gym to admin offices & a recreational room. I’ve also included a separate layout for the dog kennels (fits 8) & an armoury section. You’ll find sections A-A & B-B, plus a front elevation. There’s a key plan too showing how it sits near the railway boundary & main road. Dimensions are in metric, showing stuff like the parade ground & saluting podium.
RPF Barracks and Armoury Complex with Dog Kennel Plans
