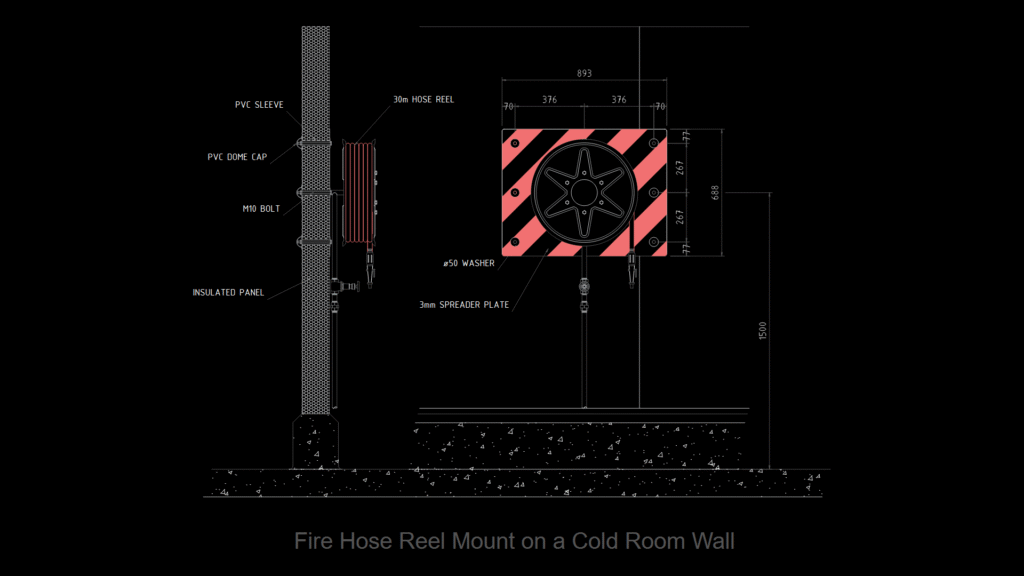

This detailed section drawing illustrates the installation methodology for mounting a 30m fire hose reel to a cold room insulated panel wall. This assembly features a PVC sleeve with dome cap that penetrates through the insulated panel to maintain thermal integrity. The mounting system employs M10 bolts with d50 washers secured to a 3mm spreader plate (893mm × 688mm) that distributes load across the insulated panel surface. The overall height of the installation is 1500mm from floor level. The design incorporates critical fire safety requirements while addressing the specific challenges of cold room construction. The spreader plate features a distinctive diagonal striped pattern for visibility, with the hose reel mounted centrally. The penetration method through the insulated panel is particularly noteworthy as it preserves the thermal envelope while providing robust support for emergency equipment. The detailed dimensions show bolt placement at 70mm from edges with 376mm spacing between fasteners, ensuring proper load distribution across the cold storage wall surface.
Fire Hose Reel detail: Cold Room Wall Mounting System with PVC Sleeve
