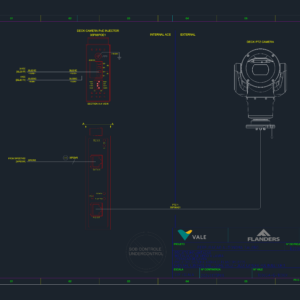

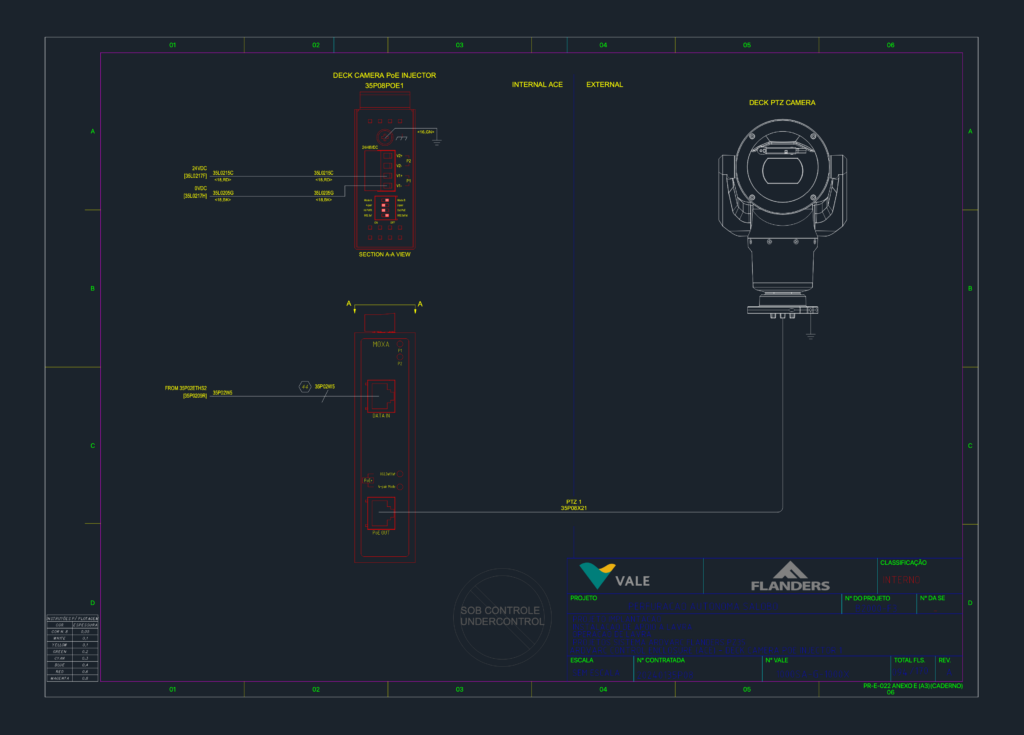

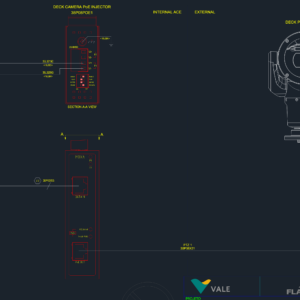

ARDVARC control enclosure (ACE) details for a deck camera PoE injector setup. Shows the Moxa 35P08POE1 unit in section and wiring connections to the external Bosch PTZ camera. Originally drawn for the Salobo autonomous drilling project. Includes schematic layout for internal and external components.
Flanders ARDVARC control enclosure and deck camera PoE injector detail
