Comprehensive Multi-Family Residential Project

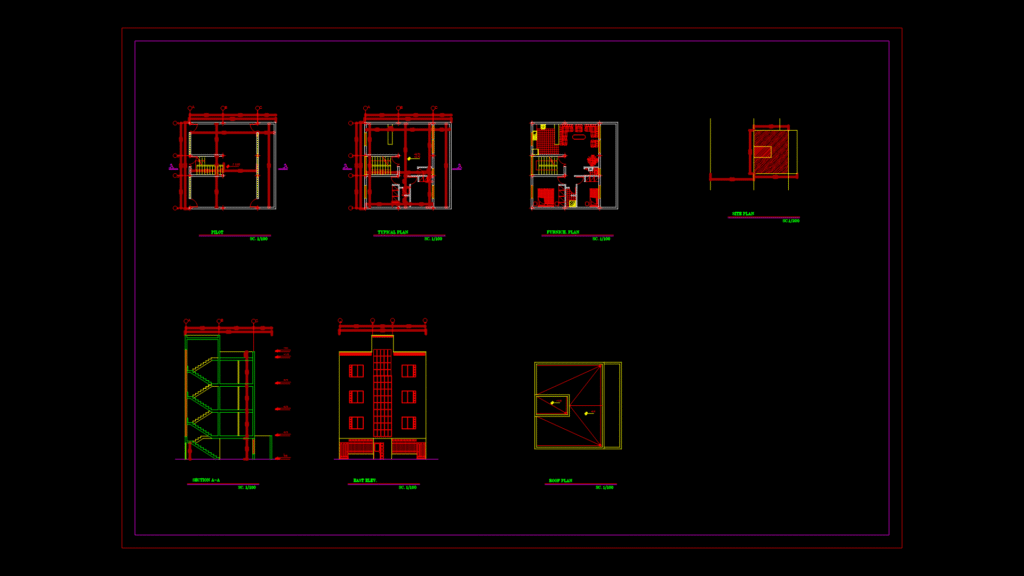

This drawing set presents a complete architectural package for a four-story apartment building. This design features a clear column grid system with three main structural axes (labeled A, B, C) creating a rectangular footprint.
Floor Plans:
– Typical floor plan (1:100 scale) shows a layout with bedrooms, living areas, kitchen, and bathrooms
– Each floor appears to have approximately 80-100 m² of usable space
– Central stairwell provides vertical circulation between all floors
– Furnished plan illustrates furniture placement including beds, dining table, kitchen fixtures, and bathroom fixtures
Building Elevations and Sections:
– East elevation (1:100 scale) shows a four-story structure with regular window placement
– Floor-to-floor heights are 2.70m between typical floors (+2.70, +5.70, +8.70)
– Maximum building height reaches +12.40m at the roof peak
– Section A-A provides internal spatial relationships and floor level designations
Technical Specifications:
– Grid spacing appears to be approximately 4.0-5.0m between major axes
– Standard door and window components incorporated throughout
– Roof design includes proper drainage considerations with slope angles
– Site plan (1:200 scale) shows building placement within property boundaries
The design employs a straightforward structural system with rational space planning that maximizes efficiency while maintaining functional living environments.
