Garu Dam Construction Topographic Map and Site Plan

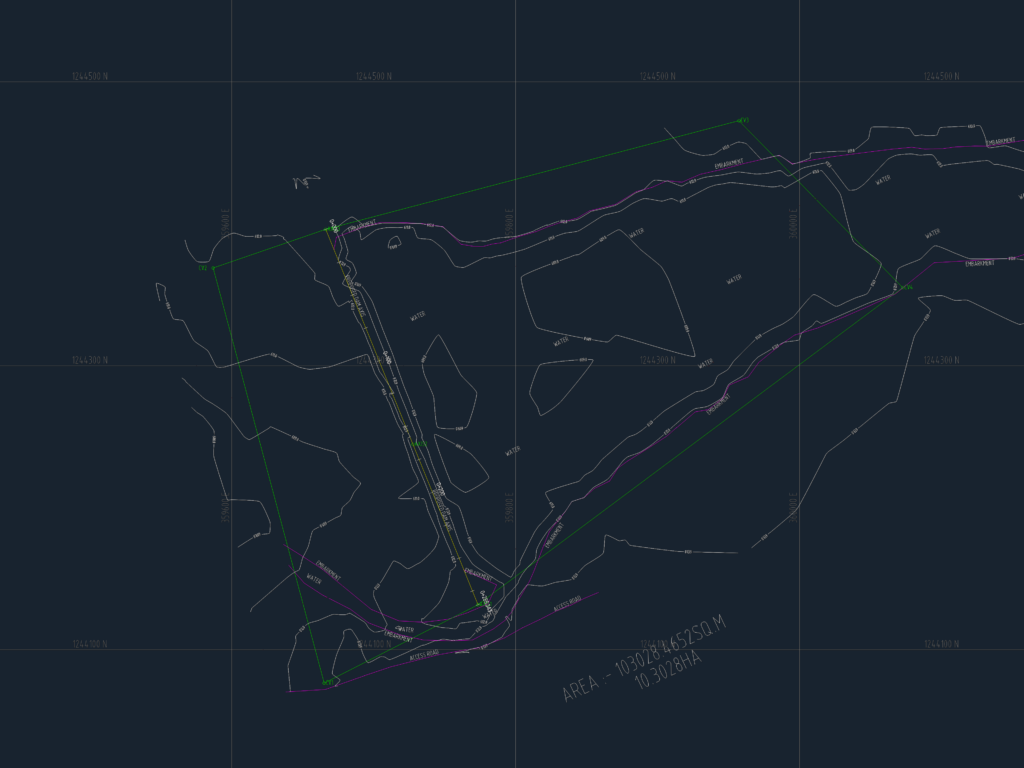

Topographic map and site plan of the Garu Dam showing axis, embankment, and 1m contour lines.

Topo map for the proposed dam in Garu, Kudan LGA. Includes the dam axis, embankment, access road, and water area. Has 1m contours, area calcs (10.3 hectares), and survey benchmarks.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
N/A
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Uploaded by
Plan DWG
Category
Public Facilities, Roads, Bridges and Dams
Published
May 31, 2026
Price $4.00
or

or get unlimited access from $7/mo

Tags

civil engineering contours dam embankment Garu Kaduna site plan survey topography water resources
