Ground floor residential plan for Unit B with property line bearings

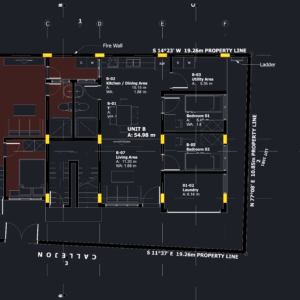

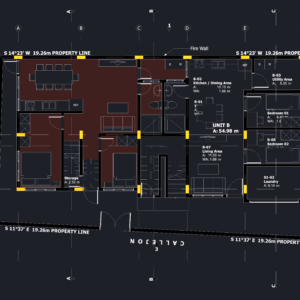

Ground floor architectural plan for a 2-bedroom residential unit including property line bearings and fire wall details.

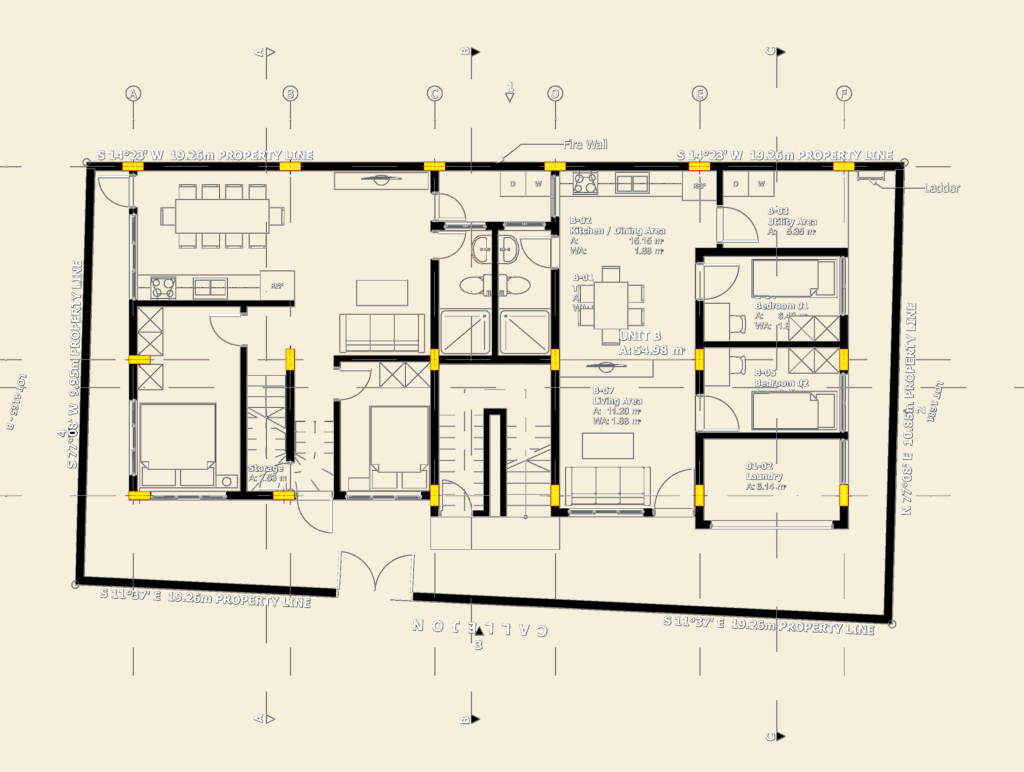

Ground floor plan for Unit B (54.98m²) featuring 2-BR layout, laundry and T&B with property line bearings.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
Concrete, Masonry
Units
Metric
Area
150 – 249 m² (1614.6 – 2680.2 ft²)
Uploaded by
Rafiq
Category
Misc Plans & Projects
Published
Jun 1, 2026
Price $2.67
or

or get unlimited access from $7/mo

Tags

2BR architectural bearings fire wall floor plan ground floor laundry metes and bounds metric property line residential storage Unit B utility area
