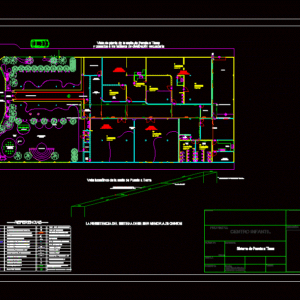

Grounding System In A Child Center DWG Block for AutoCAD
The lightning protection in schools and children
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
windbreaker, external water not covered, principal, of income, of years users users educators, crawling, months year users users educators users, infants of years users children educating users, of income, educators, initial of years users children educating users, administrativ, theater, of teaching materials, outdoor games, low, children, girls, of tools, windbreaker, Adults, Of art, food, contractor:, scale:, Format:, grounding system, draft:, children’s center, Location:, contains:, date:, plan nº:, from:, design:, angel blacutt sanchez, simple switch, fluorescent luminaire, power outlet with switch, double switch, triple switch, secondary distribution box, power circuit, take for internet network, reflector, connection box, pvc pipe, thermal box, measurer, main distribution box, double outlet, fluorescent luminaire, switch switch, phone jack, lighting fixture max., outdoor lighting fixtures, box, thermomagnet switch., fuse switch, copperweld type javelin, electrolytic copper cable, awg section, pvc interner tf duct, pvc pipe, isometric view of the grounding mesh, copperweld type javelins, electrolytic copper cable, buried cm of section level awg, plant view of the ground mesh, connection secondary distribution boards, electrode well, electrical engineer, electrode well, the system resistance must be lower ohms, welded connection
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Block |
| Category | Mechanical, Electrical & Plumbing (MEP) |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | |
| Measurement Units | |
| Footprint Area | |
| Building Features | |
| Tags | ableiter, arrester, autocad, block, center, child, children, DWG, earth, grounding, lightning, para, parafoudre, protection, raios, schools, system |
