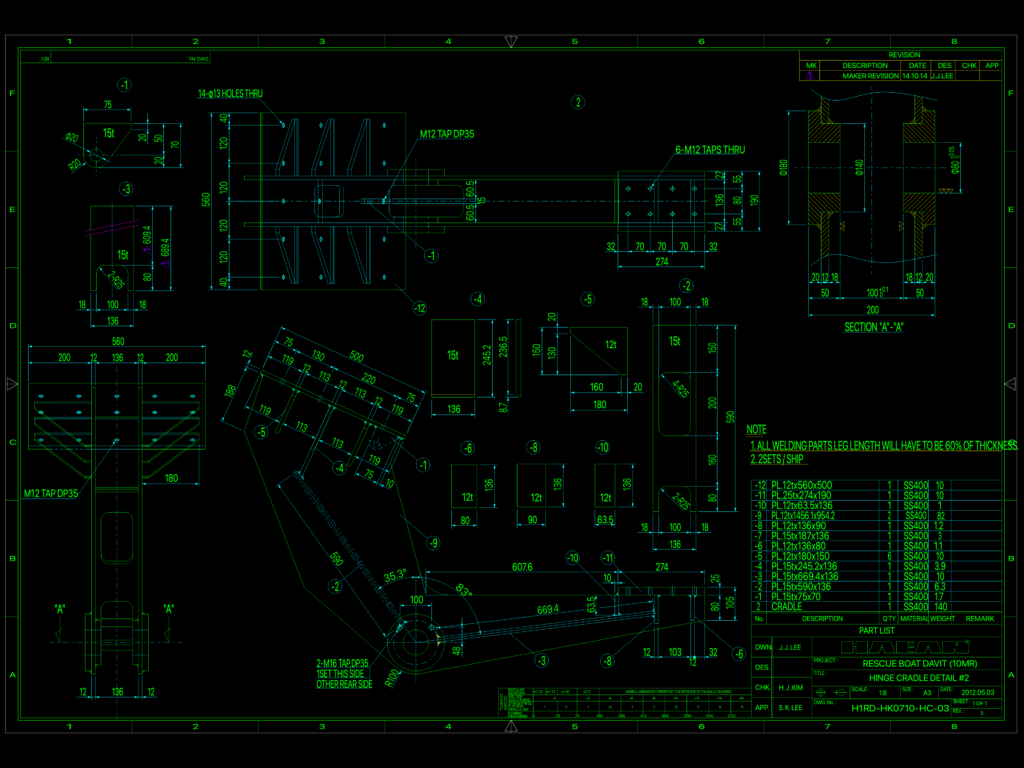

Hinge Cradle #2 component detail for a HA-AN 10MR Rescue Boat Davit. It includes the full assembly view plus specific plate details for manufacturing. Features a clear Section “A”-“A” and side elevations showing the 35.3-degree and 83-degree angles. Materials are specified as SS400 steel throughout the part list. You’ll find dimensions for the base plates, side stiffeners, and the main hinge assembly. Notes on the drawing cover welding leg length requirements (60% of thickness) and hole tapping specs (M12 and M16). Useful reference for marine davit systems or heavy structural hinge designs.
HA-AN H1RD-HK0710-HC-03 Rescue Boat Davit Hinge Cradle Detail #2
