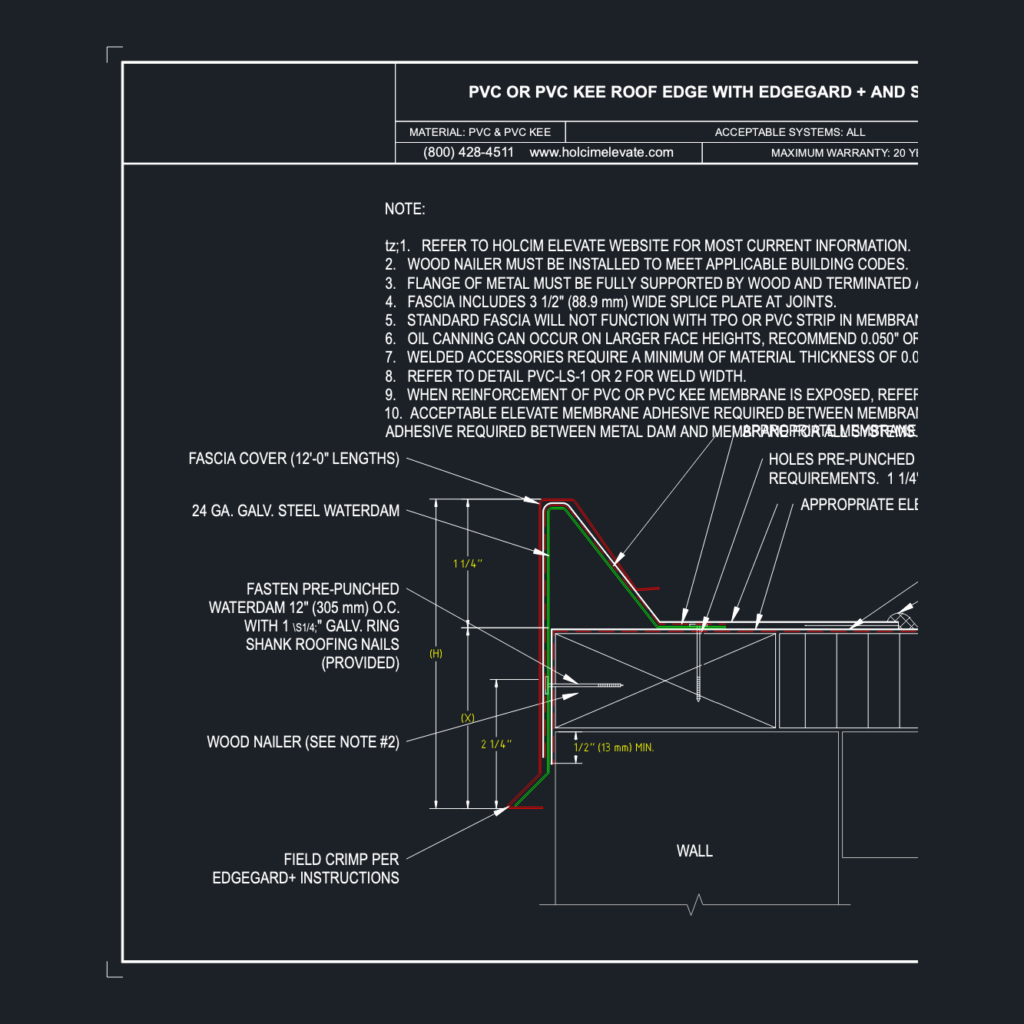

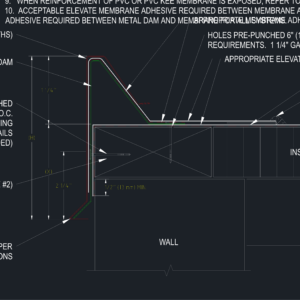

PVC or PVC KEE roof edge detail using Edgegard+ and separte flashing. Shows 24 ga. galv. steel waterdam, fascia cover in 12′ lengths, & wood nailers. Fastening specs included: 1 1/4″ galv. ring shank nails at 12″ O.C. for waterdam, 6″ O.C. for membrane. Notes cover oil canning for face heights over 8″ (rec. 0.050″ or 0.063″ thk.), weld widths, & adhesive requirements for adhered systems. Standard commercial roofing edge, includes splice plate info & more. Features: – 24 ga. galv. steel waterdam – Fascia cover (12′-0″ lengths) – Wood nailer installation (1/2″ min. gap) – Insulation and substrate interface – Holcim Elevate technical notes included
Holcim Elevate PVC Roof Edge with Edgegard+ Detail
