Hotel, Restaurant 2D DWG Plan for AutoCAD

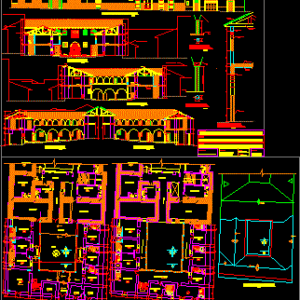

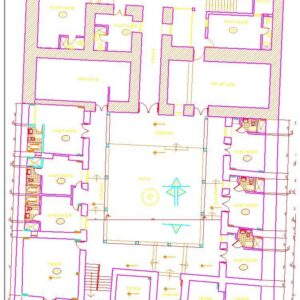

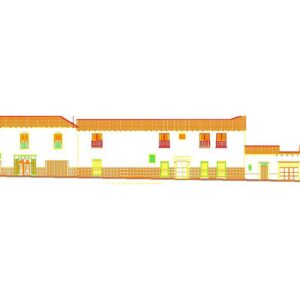

Plan, elevation and cross section view of hotel. Plan has two floors and roof top. First floor has following areas – store, hall, 10 bed rooms, reception, terrace and toilets. Second floor has following areas – 13 furnished bed rooms, cafe, passage area and toilets. Total foot print area of the plan is approximately 534 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 500 - 999 m² (5382.0 - 10753.1 ft²) |
| Building Features | A/C |
| Tags | 2d, accommodation, autocad, DWG, elevations, Hotel, plan, Restaurant, section |
