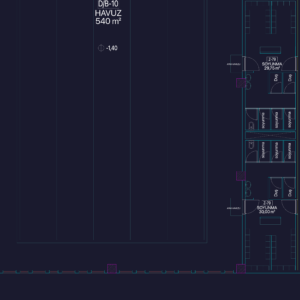

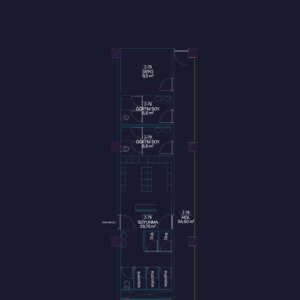

This drawing is for an indoor swimming pool facility layout covering roughly 540 square meters of pool area. It includes specific zones for changing rooms, showers, a storage depot and a teacher’s locker area. Labels are in Turkish, showing room dimensions and floor levels for the entire ground floor. The plan features the main entrance, foot bath stations, and general circulation paths; could be useful in sports complex or recreational club projects.
Indoor Swimming Pool Floor Plan with Changing Room Details
