Large level 1 floor plan with pool and outdoor area

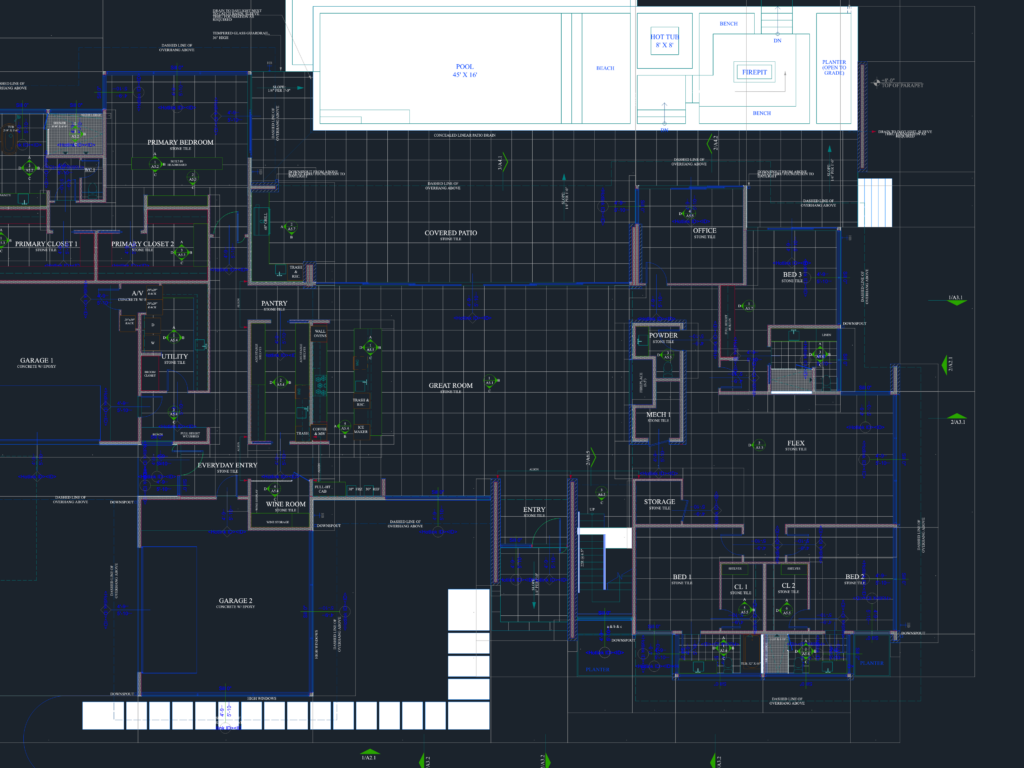

Architectural level 1 floor plan with 3 bedrooms, garages, and outdoor living area featuring a 45x16 foot pool and firepit.

Floor plan for a big level 1 layout incl. 3 beds, office, and full pool deck. covers the wine room, garages, firepit area, and more

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
Concrete, Glass, Masonry, Wood
Units
Imperial
Area
1000 – 2499 m² (10763.9 – 26899.0 ft²)
Features
Pool, Fireplace, Garage, Deck / Patio
Uploaded by
CAD Workshop
Category
House, Residential
Published
May 16, 2026
Price $4.95
or

or get unlimited access from $7/mo

Tags

floor plan POOL residential
