Modern Restaurant 2D DWG Design Block for AutoCAD

This block is a modern restaurant that has a capacity for four hundred people, has two levels, with vestier, bathrooms, kitchen service, frontcounter, administrative offices, details of the finishes of the floor, and in the second level is the store and the area of refrigeration.

Language Spanish
Drawing Type Block
Category

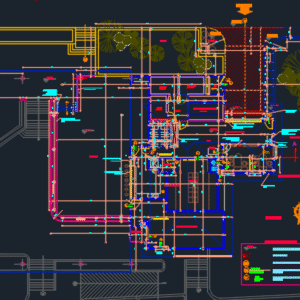

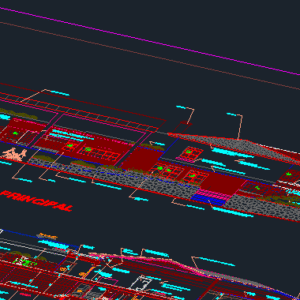

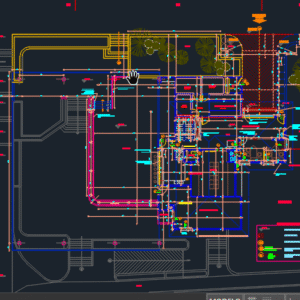

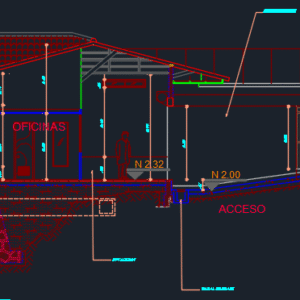

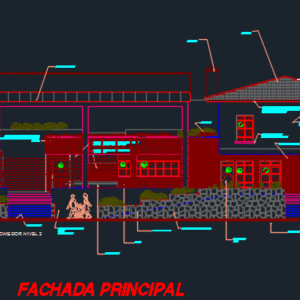

Additional Screenshots




File Type dwg, zip
Materials Concrete, Steel, Wood
Measurement Units Metric
Footprint Area 1000 - 2499 m² (10763.9 - 26899.0 ft²)
Building Features
Tags , , , , , , , , , , ,
