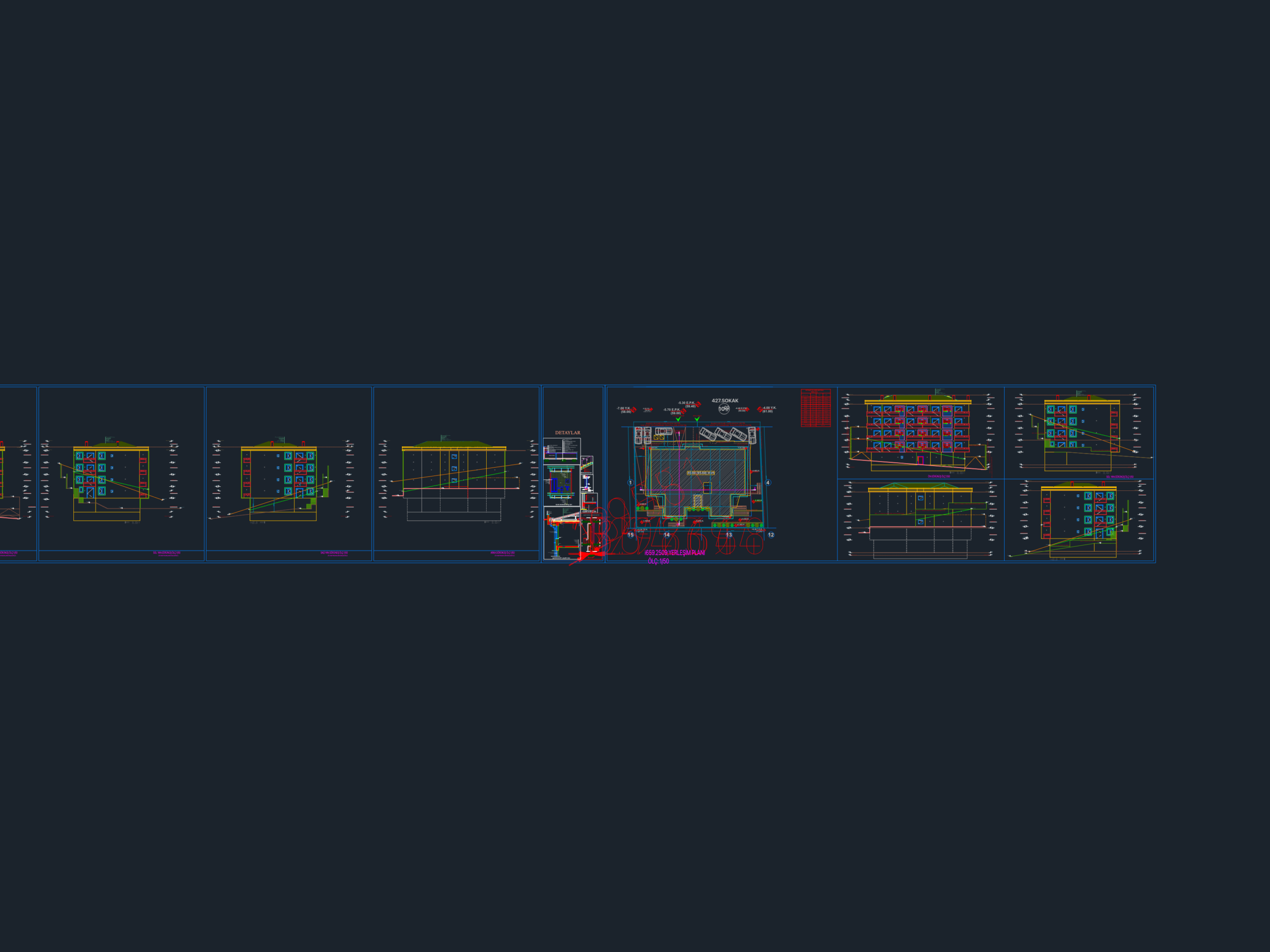

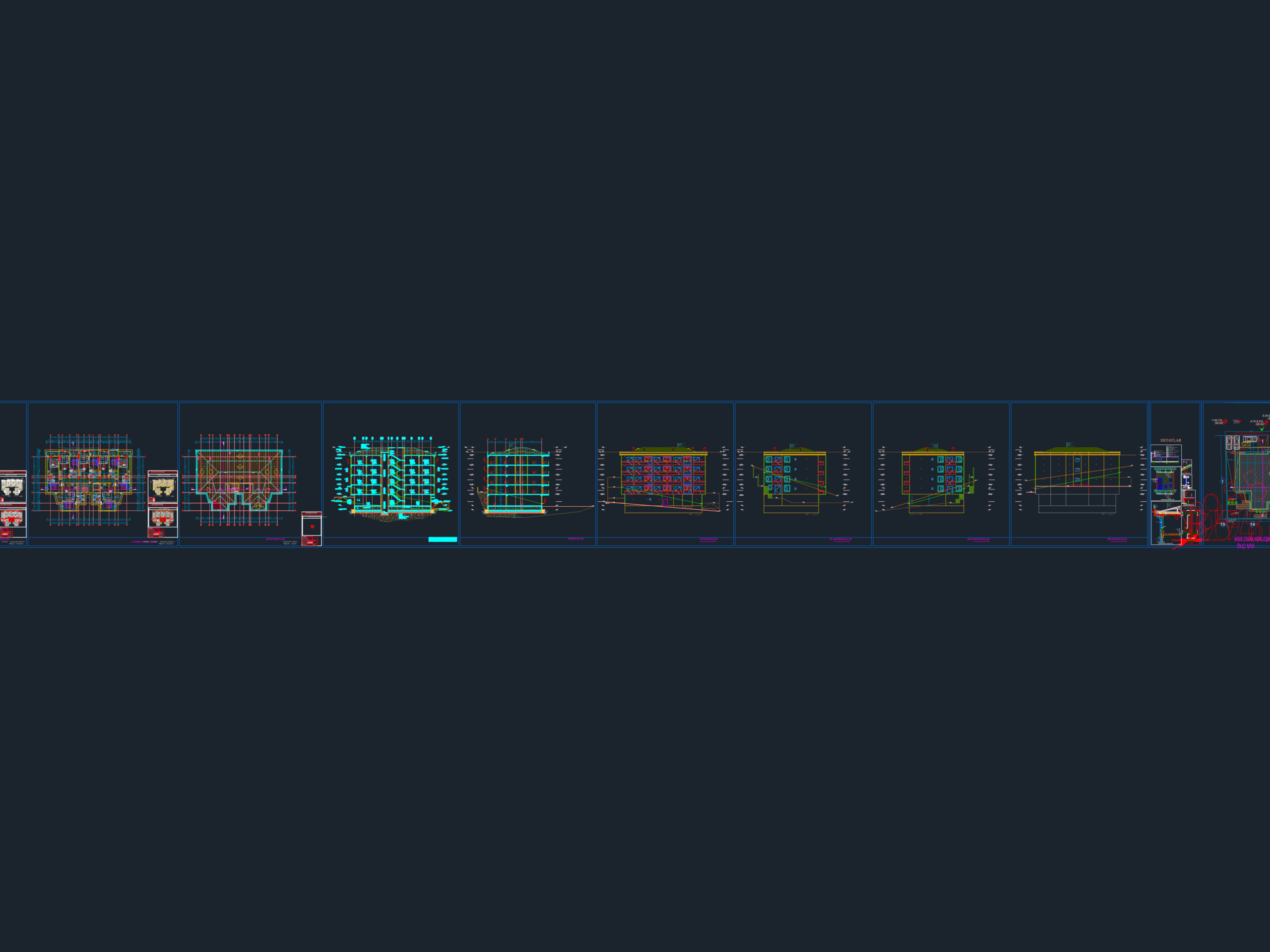

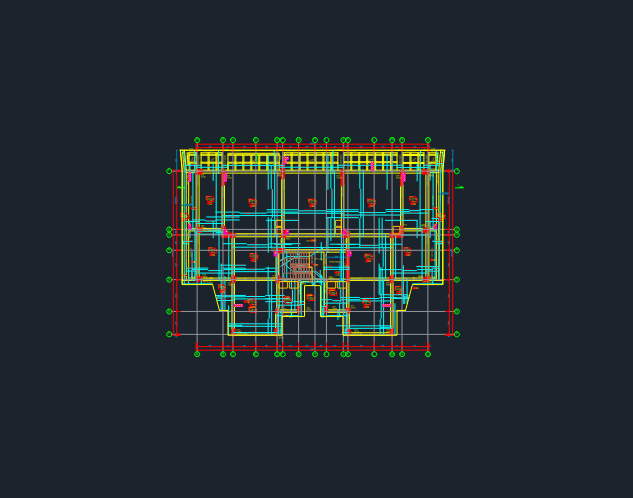

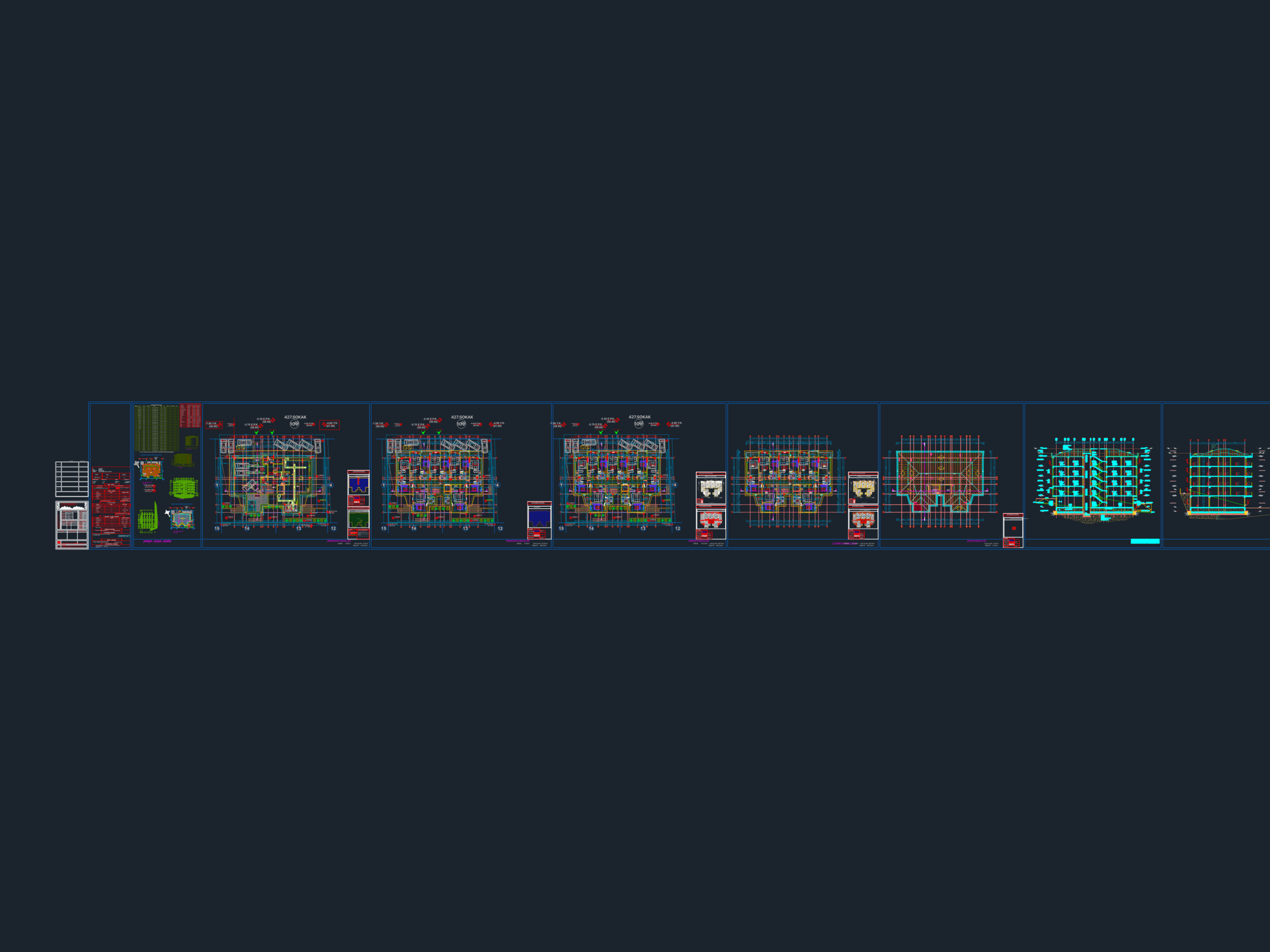

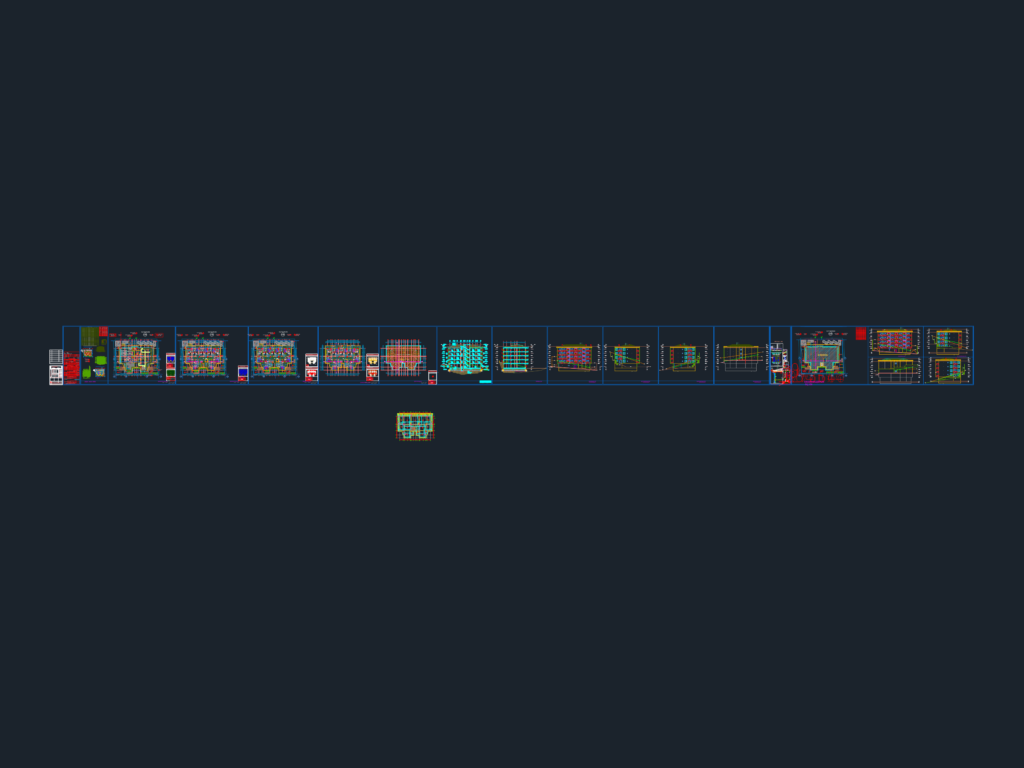

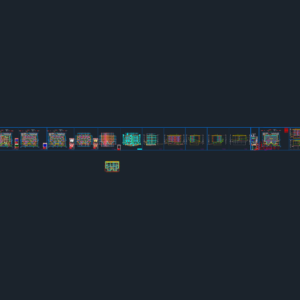

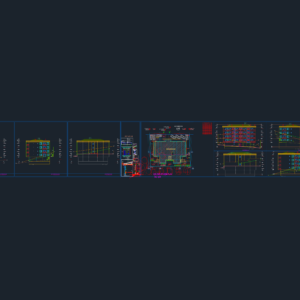

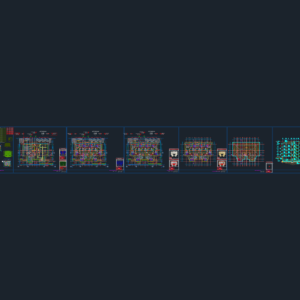

Apartment building project featuring 28 units (1+1 typ. layout). Site plan covers 807.41 m² area with TAKS 0.40 and KAKS 1.20 calculations. Includes ground floor, upper floors, and roof floor plans plus cross-sections & elevations. Technical specs for stairs (18×16.11/27 riser/tread), 90cm h. railings, and shelter area of 84.00 m². MEP-related calculations included for 10-car parking and 3.5×2.0×1.7m water tank. Material specs noted for ceramic/wood floor finishes and gypsum plaster walls. All drawings prepared according to TSE standards. samsun Atakum Esenevler’de bulunan 28 dairelik konut projesi uygulama çziimleri.
Residential Apartment Building Full Project Plans and Sections CAD
