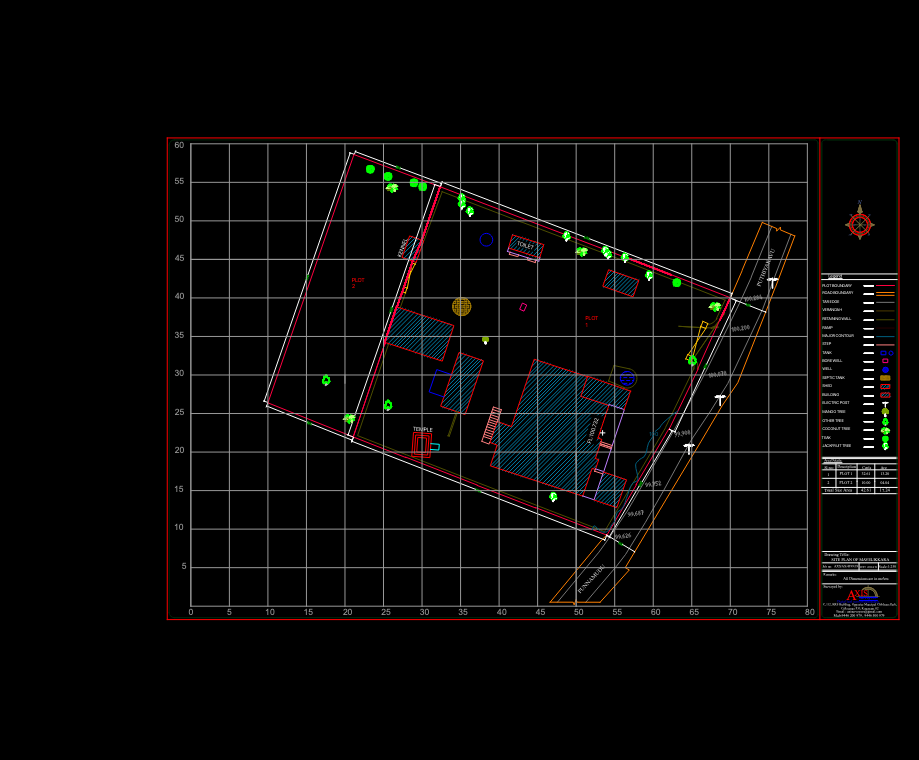

Floor plan and site survey for a residential project at Mavelikkara. The layout includes a central courtyard, three bedrooms, an office, and a music space. Site plan shows two plots with contours, road boundaries, and existing trees like mango, teak, and coconut. You’ve also got sections for a carporch, sit-out, and utility areas. Dimensions are primarily in cm but the site plan notes meters. I’ve included the legend for symbols like septic tanks and bore wells. It’s a complete preliminary set with structural and architectural consultant info in the title block.
Residential building floor plan and site survey for Mavelikkara house DWG
